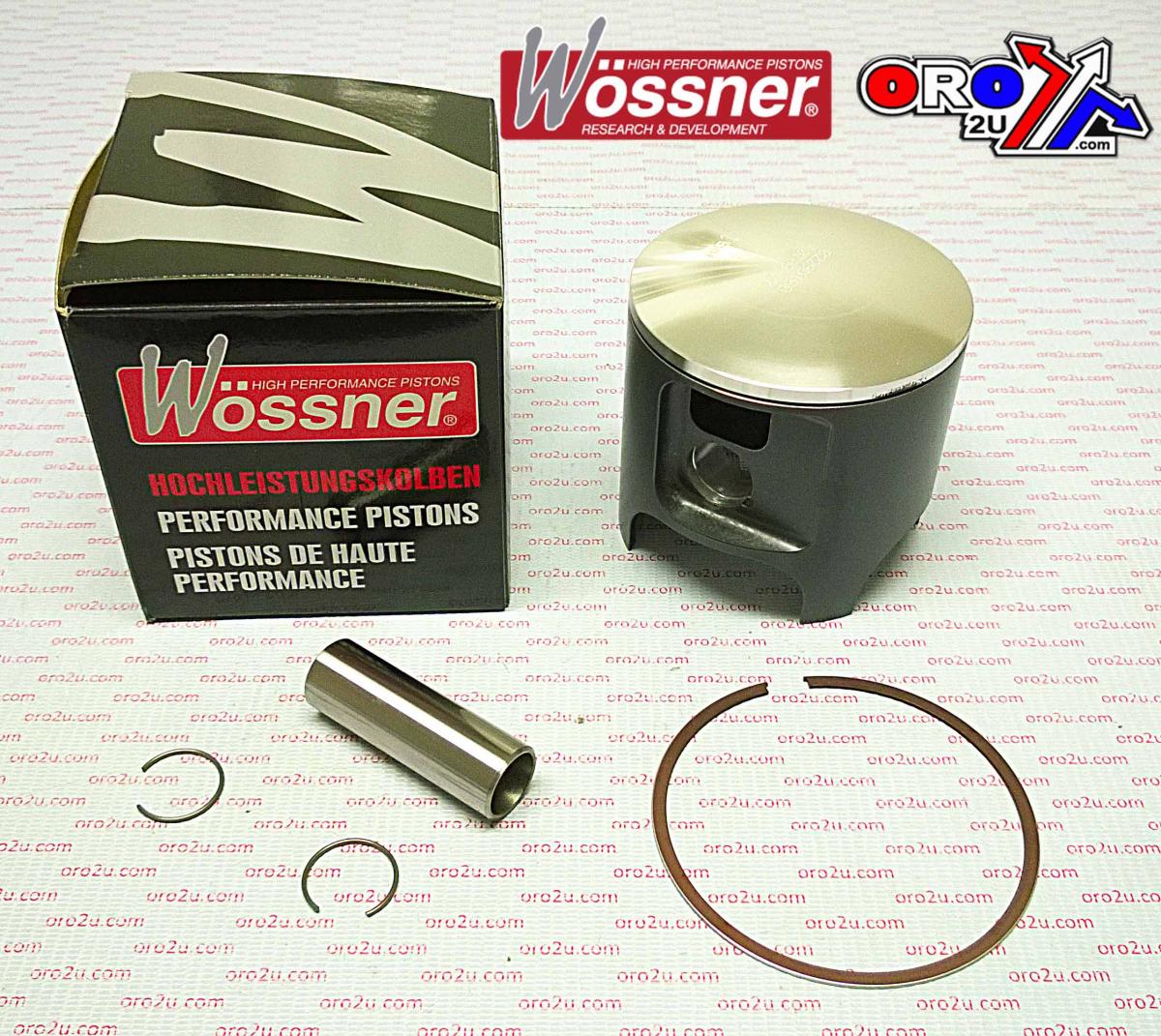

PISTON KIT 84-01 CR500 90.00, WOSSNER 8229D100 HONDA MX

Piston Kit 90.00mm Bore 89.92 Wossner 8229D100 (+1.00)

HONDA
CR500 1984-2001,
CR480 1982-1983,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

56-W554+100.WO (oro2u.com)
Lock P/N CW20
Pin P/N WP086
Ring Set P/N RSC9000
Connecting Rod P/N P2044

Display (cm3) 500
Hub stroke (mm) 79.00
Clearance (mm) 0.08
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 40.00
Theorectical weight (G)
