PISTON KIT 83-84 SUZUKI RM 500 89.5mm 1.0mm OVER VINTCO PSS19-1.0

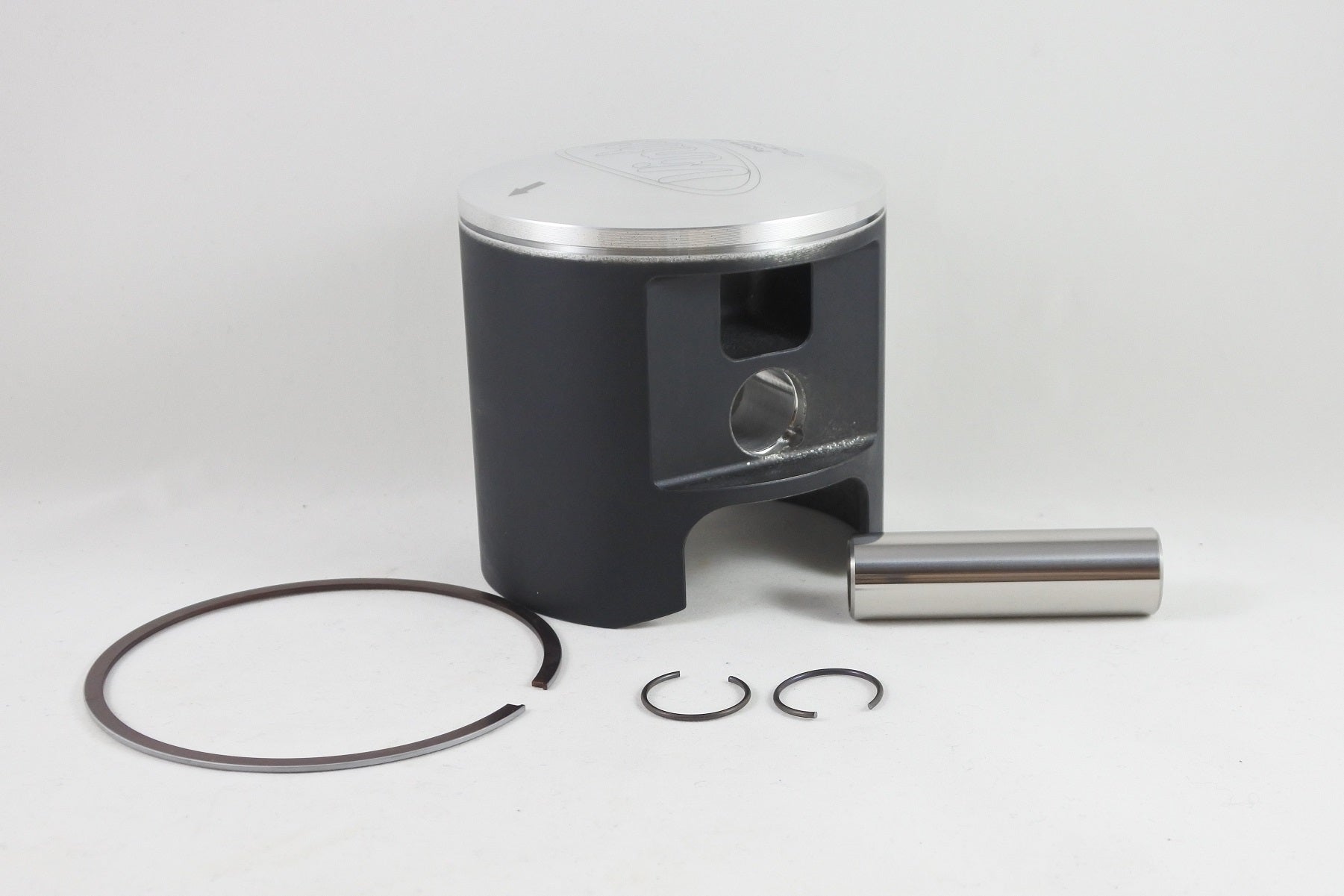

This piston kit is designed for 1983-1984 Suzuki RM500 models and serves as a replacement component for vintage 2-stroke engines. Manufactured using modern materials and production methods for OEM-level or better fitment and performance, the kit includes the piston, rings, pin and clips for straightforward installation. A wrist pin bearing is available separately, and additional size options are also available.

Features

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke engine rebuilds
• OEM-level or better fitment and performance
• Wrist pin bearing sold separately
• MoS2 coating aids running-in
• Additional size options available

Specifications

• VintCo Part Number: PSS19-1.0
• Application: 1983-1984 Suzuki RM500
• Piston type: Forged
• Country of manufacture: Germany
• Oversize: +1.0 mm
• Nominal piston size: 89.5 mm
• Measured size: 89.40 mm
• Clearance: 0.10 mm

Vehicle Fitments

• 1983 Suzuki RM500
• 1984 Suzuki RM500
