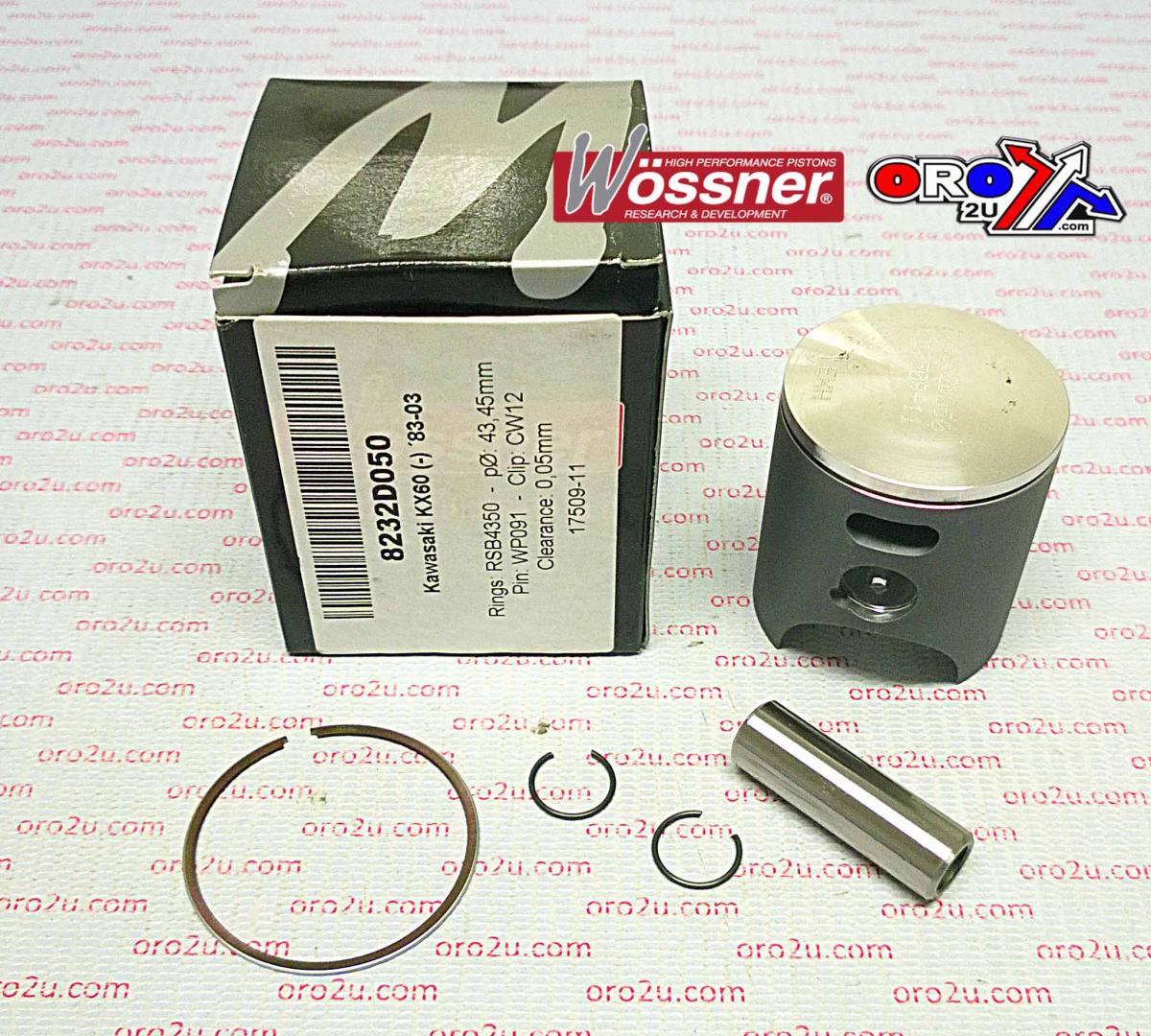

PISTON KIT 83-03 KX60 44.00, WOSSNER 8232D100 KAWASAKI MX

KAWASAKI
KX60 1983 - 2003,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W648.P4.WO (phoenixmotos.com)
Wossner Piston Kawasaki KX60 44 mm Bore (PN# 8232D100)
Lock P/N CW12
Pin P/N WP091
Ring Set P/N RSB4400
Rod P/N P2001

Display (cm3) 60
Hub stroke (mm) 41.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 23.50
Theorectical weight (G)

1983 Kawasaki KX 60 1984 Kawasaki KX 60 1985 Kawasaki KX 60 1986 Kawasaki KX 60 1987 Kawasaki KX 60 1988 Kawasaki KX 60

1989 Kawasaki KX 60 1990 Kawasaki KX 60 1991 Kawasaki KX 60 1992 Kawasaki KX 60 1993 Kawasaki KX 60 1994 Kawasaki KX 60 1995 Kawasaki KX 60 1996 Kawasaki KX 60 1997 Kawasaki KX 60
