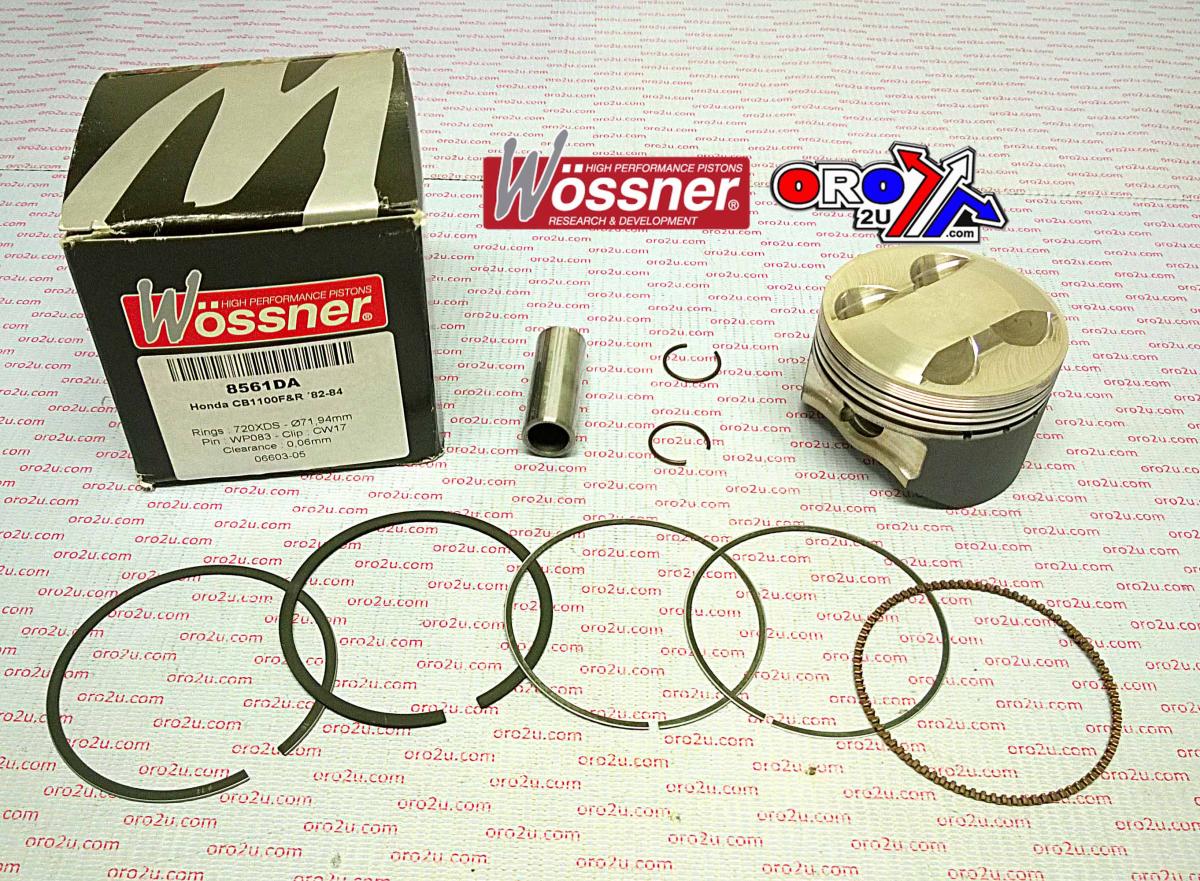

PISTON KIT 82-84 CB1100 72.00, WOSSNER 8561DA ROAD EACH

HONDA
CB1100F 1982 - 1984,
CB1100R 1982 - 1984,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9806.70.EA (phoenixmotos.com)
HONDA 1982 - 1984 CB1100F, CB1100R,
WOSSNER STD 8561DA PISTON, 72.00mm,

Display (cm3) 1123
Hub stroke (mm) 69.00
Clearance (mm) 0.06
Wossner compression Ratio:10.00:1
OEM Compression ratio: 9.70:1
Dome volume (cm3)+3.70
Compression height (mm) 25.40
Theorectical weight (G)
