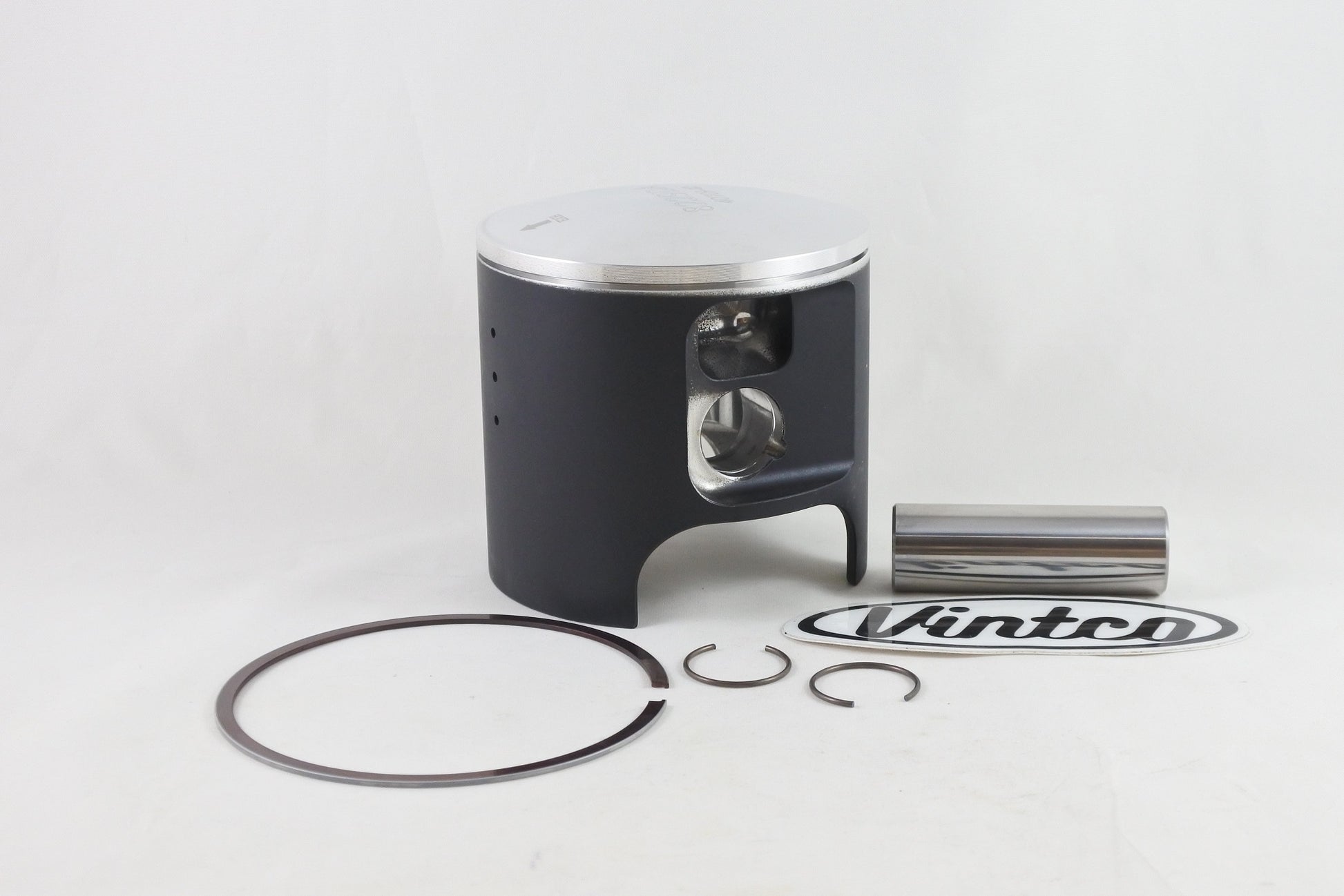

PISTON KIT 82-01 HONDA CR 480 500 89.00mm STANDARD VINTCO PSH16-00

This piston kit is designed for Honda CR480 and CR500 models and includes the piston, ring(s), pin and clips for standard-size replacement. It features a forged piston with a MoS2 coating for running-in, while the wrist pin bearing is sold separately. Manufactured in Germany, this kit suits the listed 1982-2001 applications.

Features

• Includes ring(s), pin and clips
• MoS2-coated for running-in
• Standard-size piston kit
• Wrist pin bearing sold separately

Specifications

• VintCo Part Number: PSH16-00
• Piston size: 89.00 mm
• Measured piston diameter: 88.92 mm
• Clearance: 0.08 mm
• Forged piston
• Made in Germany

Vehicle Fitments

• 1982 Honda CR480
• 1983 Honda CR480
• 1984 Honda CR500
• 1985 Honda CR500
• 1986 Honda CR500
• 1987 Honda CR500
• 1988 Honda CR500
• 1989 Honda CR500
• 1990 Honda CR500
• 1991 Honda CR500
• 1992 Honda CR500
• 1993 Honda CR500
• 1994 Honda CR500
• 1995 Honda CR500
• 1996 Honda CR500
• 1997 Honda CR500
• 1998 Honda CR500
• 1999 Honda CR500
• 2000 Honda CR500
• 2001 Honda CR500
