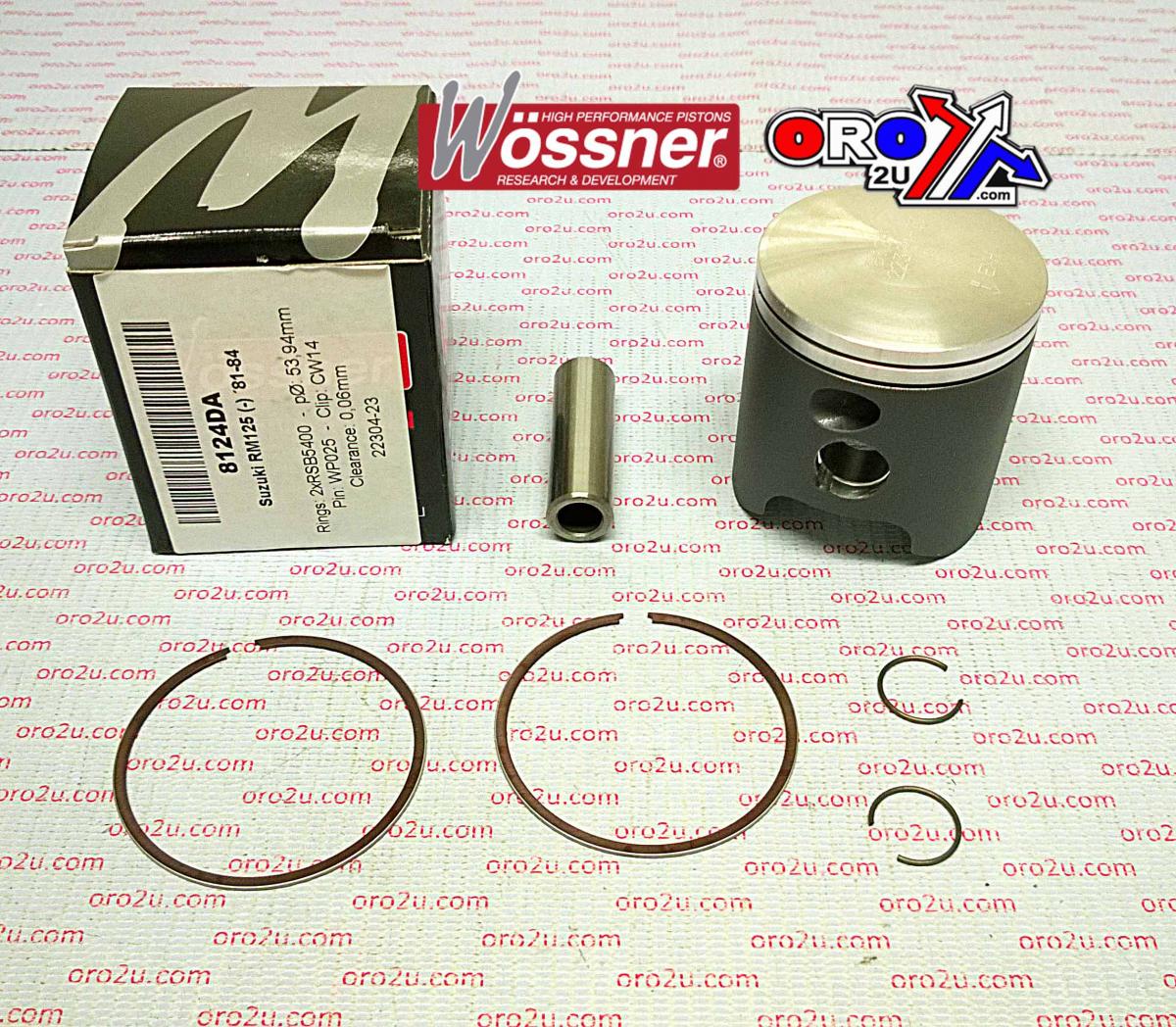

PISTON KIT 81-84 RM125 54.50, WOSSNER 8124D050 SUZUKI

SUZUKI RM125 1981 - 1984

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Lock P/N: CW14
• Pin P/N: WP025
• Ring Set P/N: RSB5450 X 2
• Connecting Rod Kit P/N: P2040

Specifications:

• Display (cm3): 123
• Hub Stroke (mm): 54.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2 stroke
• OEM Compression Ratio: 2 stroke
• Dome Volume (cm3):
• Compression Height (mm): 29.50
• Theoretical Weight (G):
