PISTON KIT 81-84 MAICO 490 88.0mm 1.5mm OVER VINTCO PSM04-1.5

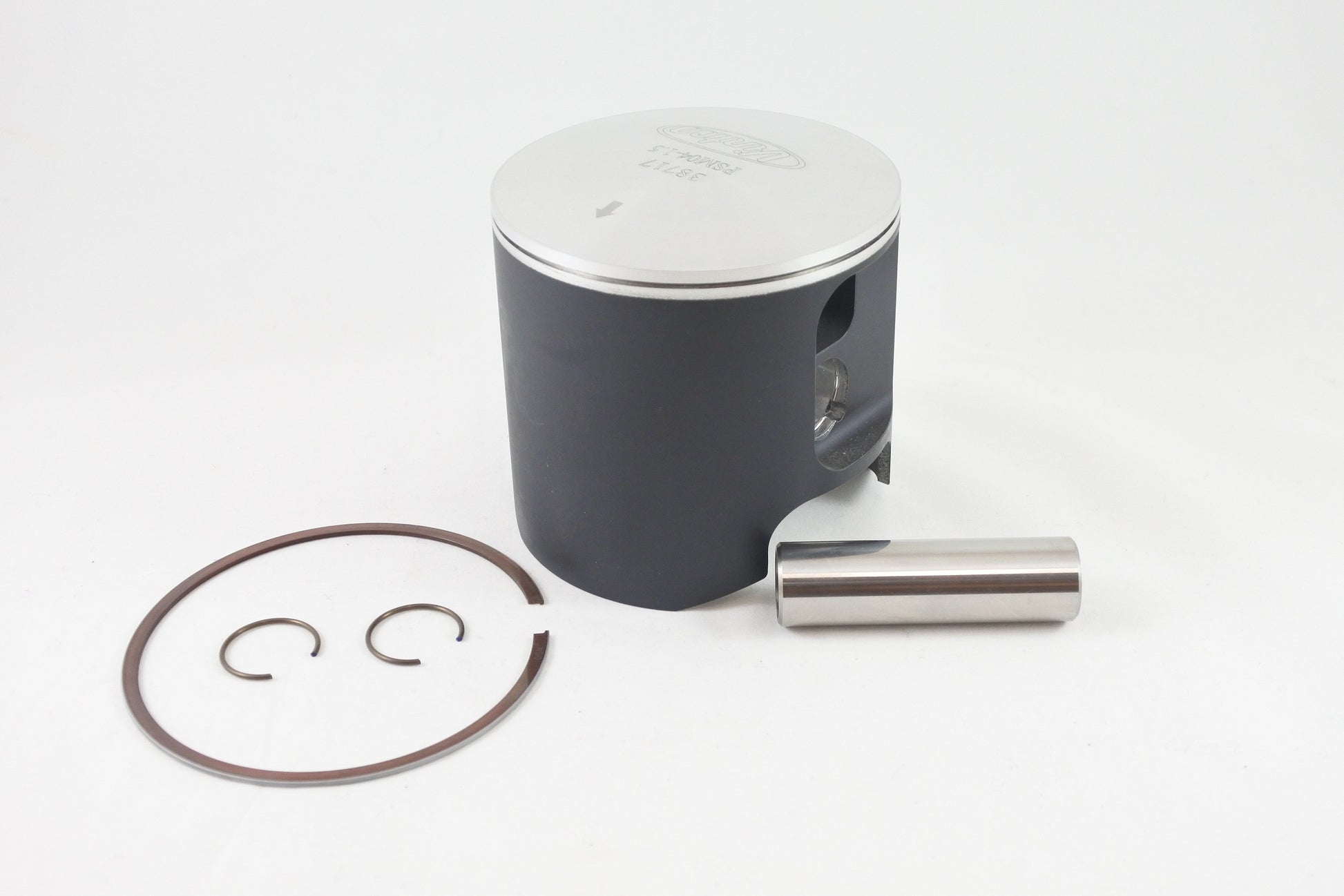

This VintCo piston kit is designed for 1981-1984 Maico 490 models and is intended for vintage 2-stroke engine rebuilds. It includes the piston, rings, pin and clips, and is manufactured using modern materials and production techniques to provide OEM-equivalent or better fitment and performance. The kit is a forged design, made in Germany, with a MoS2 coating to support running-in. A wrist pin bearing is available separately, and additional size options are also available.

Features

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke engine rebuilds
• Designed to provide OEM-equivalent or better fitment and performance
• Wrist pin bearing sold separately
• Additional size options available

Specifications

• VintCo Part Number: PSM04-1.5
• Piston diameter: 88.0 mm
• Oversize: +1.5 mm
• Piston measurement: 87.92 mm
• Clearance: 0.08 mm
• Forged piston
• MoS2 coated
• Made in Germany

Vehicle Fitments

• 1981 Maico 490
• 1982 Maico 490
• 1983 Maico 490
• 1984 Maico 490
