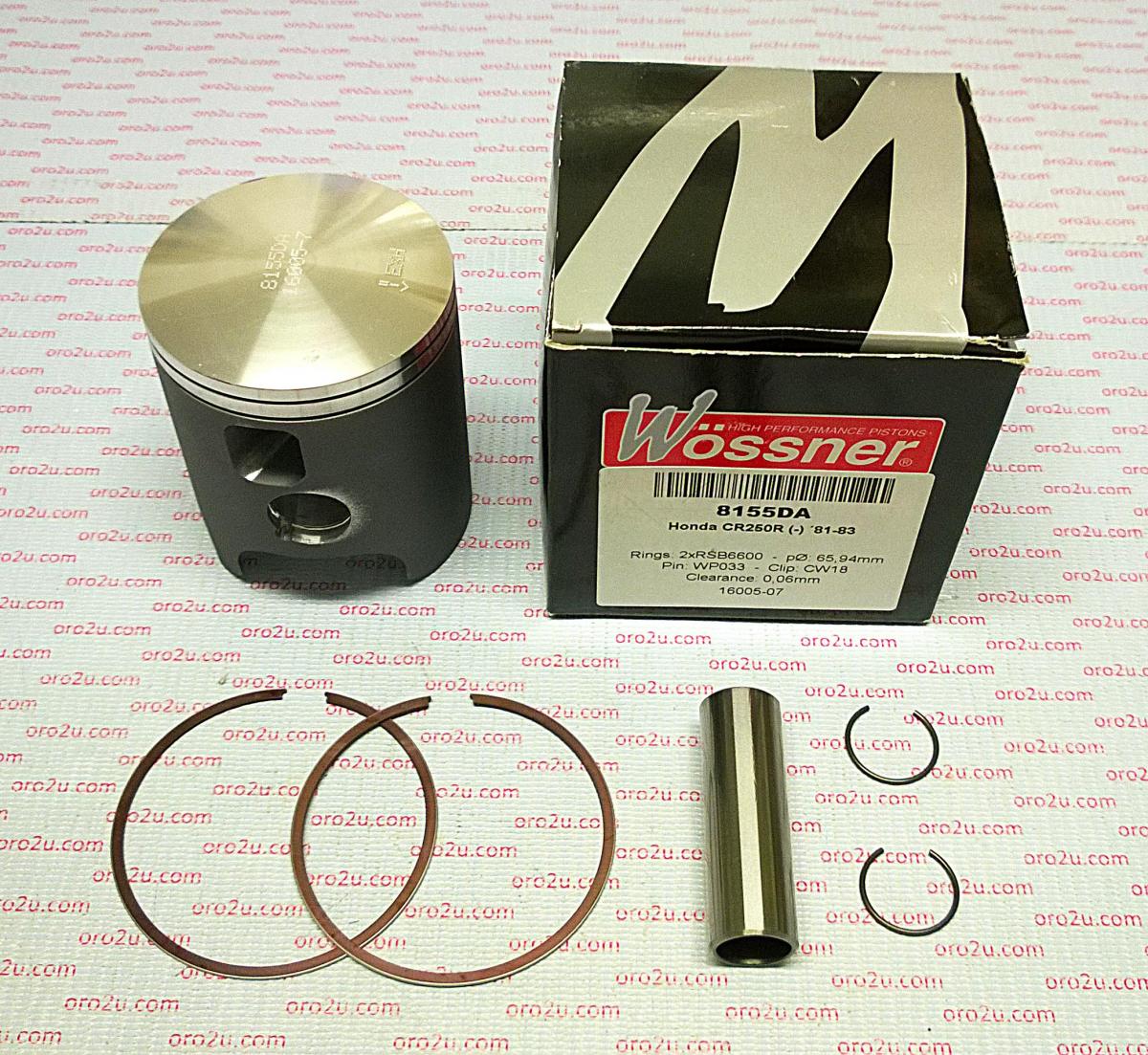

PISTON KIT 81-83 CR250 68.00, FORGED WOSSNER 8155D200

Piston kit 68mm Bore 67.94 Wossner 8155D200 (+2.00)

HONDA
CR250R 1981 - 1983,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W466+P8.WO (oro2u.com)
Wossner Piston Honda CR250R 68 mm Bore (PN# 8155D200)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6800 x 2

Display (cm3) 246
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 241.20
Theorectical weight (G)
