PISTON KIT 80-84 HONDA CR 125 55.5mm STANDARD VINTCO PSH03-00

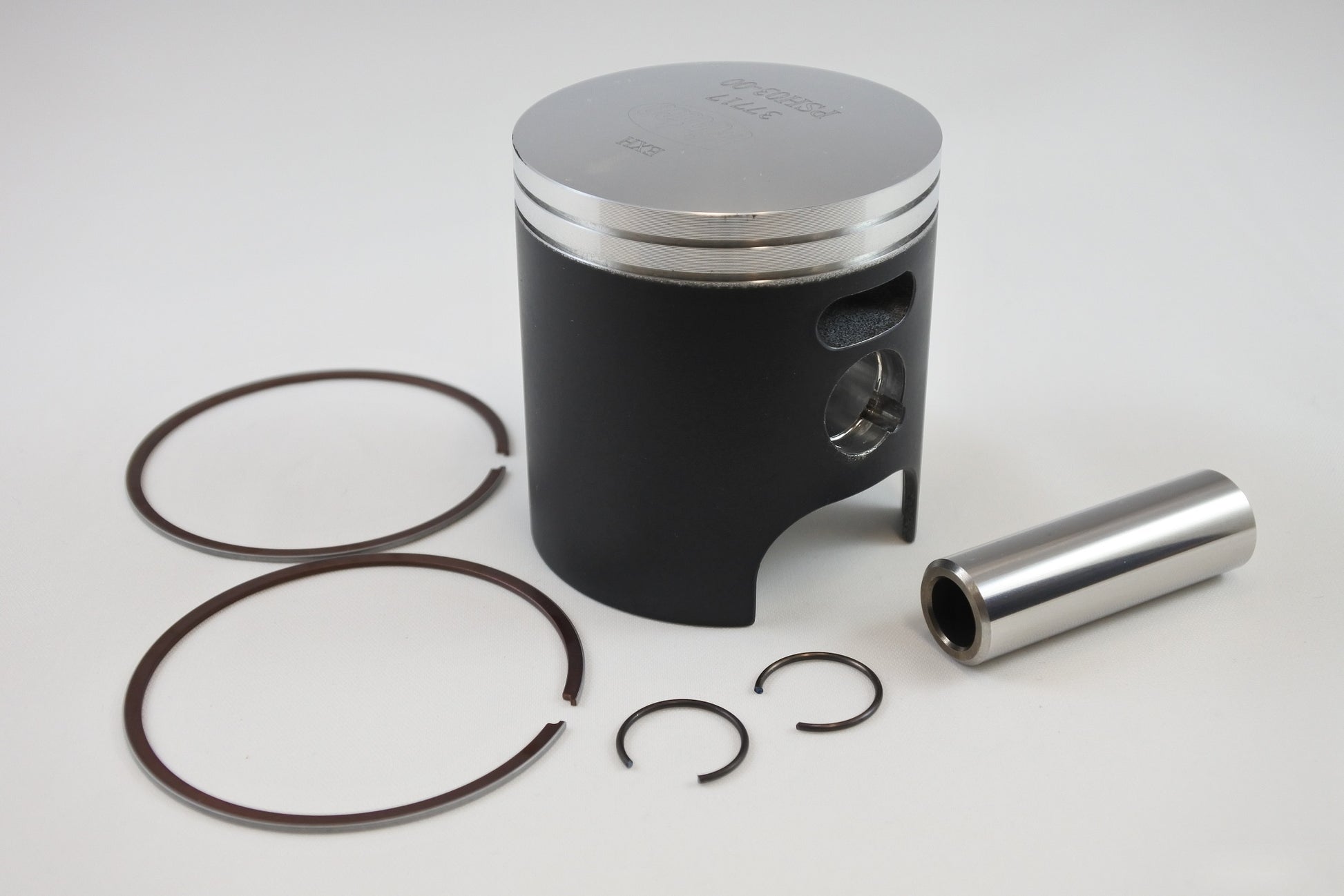

VintCo PSH03-00 is a standard-size piston kit for Honda CR125 models from 1980 to 1984, supplied with the piston, rings, pin and clips. It is manufactured using modern materials and production methods for OEM-equivalent fitment and performance. Note: the rings will not work with the original chrome-plated Honda cylinder on CR125 1979 and CR250 1978-80 models; VintCo rings are only compatible with Nikasil plating or an iron liner.

Features

• Complete piston kit with piston, rings, pin and clips
• Standard bore replacement for Honda CR125 1980-84
• Wrist pin bearing sold separately
• Additional size options available

Specifications

• VintCo Part Number: PSH03-00
• Piston size: 55.5 mm
• Measured size: 55.44 mm
• Clearance: 0.06 mm
• Construction: Forged piston
• Coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• 13101-KA3-000

Vehicle Fitments

• 1980 Honda CR125
• 1981 Honda CR125
• 1982 Honda CR125
• 1983 Honda CR125
• 1984 Honda CR125
