PISTON KIT 77-81 SUZUKI RM PE RS 250 68.0mm +1.00mm OVER VINTCO PSS03-1.0

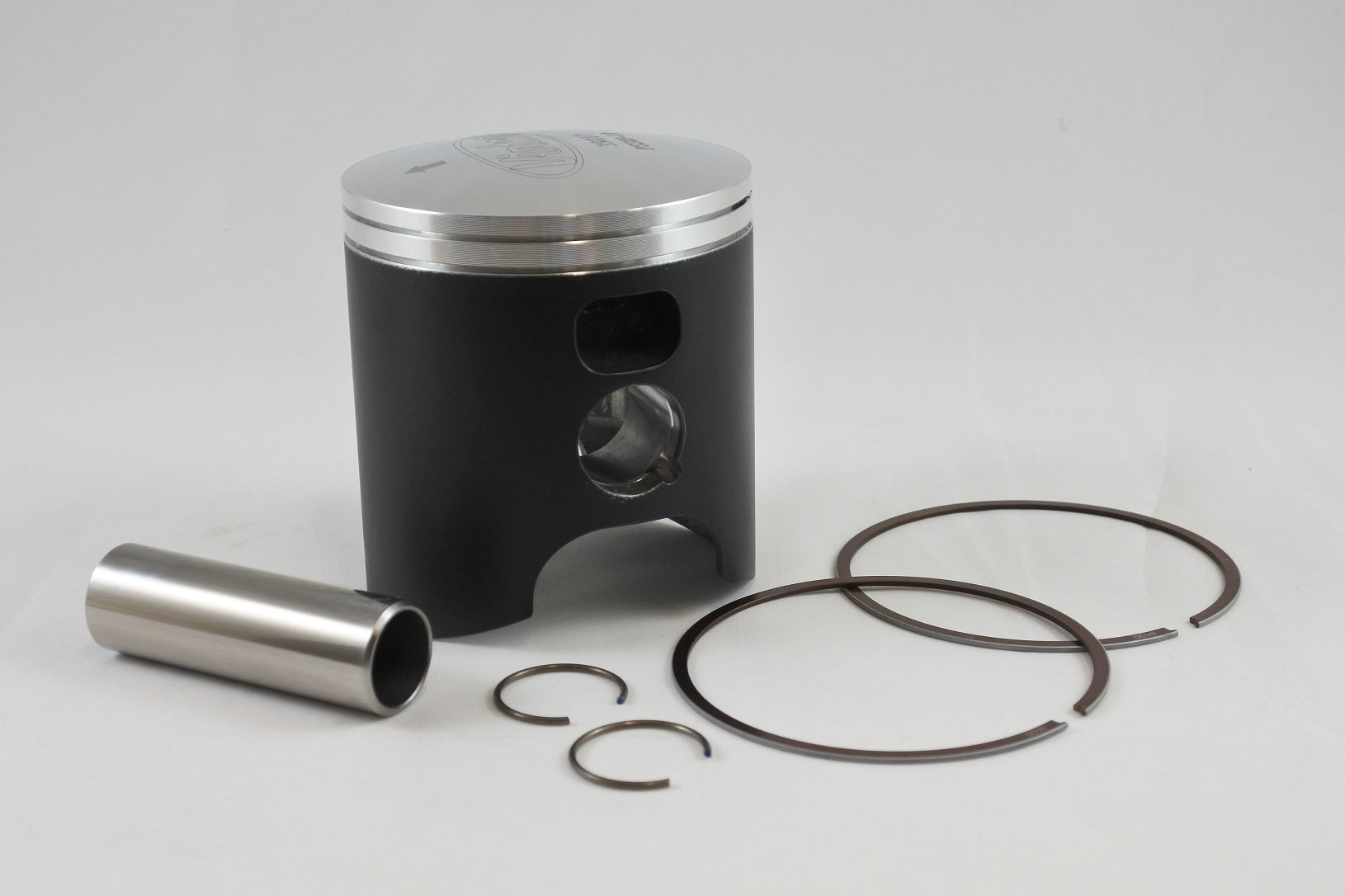

VintCo PSS03-1.0 is a piston kit for Suzuki RM250, PE250 and RS250 models, intended for vintage 2-stroke engine rebuilds. Produced using modern materials and manufacturing techniques for OEM-level fitment and performance, this 68.0 mm piston is supplied in +1.00 mm oversize and includes the piston, rings, pin and clips for installation. It is a forged piston made in Germany with a MoS2 coating for running-in; the wrist pin bearing is available separately, and additional size options are also available.

Features

• Complete piston kit for vintage 2-stroke engine rebuilds
• Includes piston, rings, pin and clips
• Wrist pin bearing sold separately
• MoS2 coating assists during running-in
• Additional size options available

Specifications

• VintCo Part Number: PSS03-1.0
• Piston diameter: 68.0 mm
• Oversize: +1.00 mm
• Piston size: 67.94 mm
• Clearance: 0.06 mm
• Construction: Forged
• Country of manufacture: Germany

Vehicle Fitments

• 1977 Suzuki RM250
• 1977 Suzuki PE250
• 1978 Suzuki RM250
• 1978 Suzuki PE250
• 1979 Suzuki RM250
• 1979 Suzuki PE250
• 1980 Suzuki RM250
• 1980 Suzuki PE250
• 1980 Suzuki RS250
• 1981 Suzuki RM250
• 1981 Suzuki PE250
• 1981 Suzuki RS250
