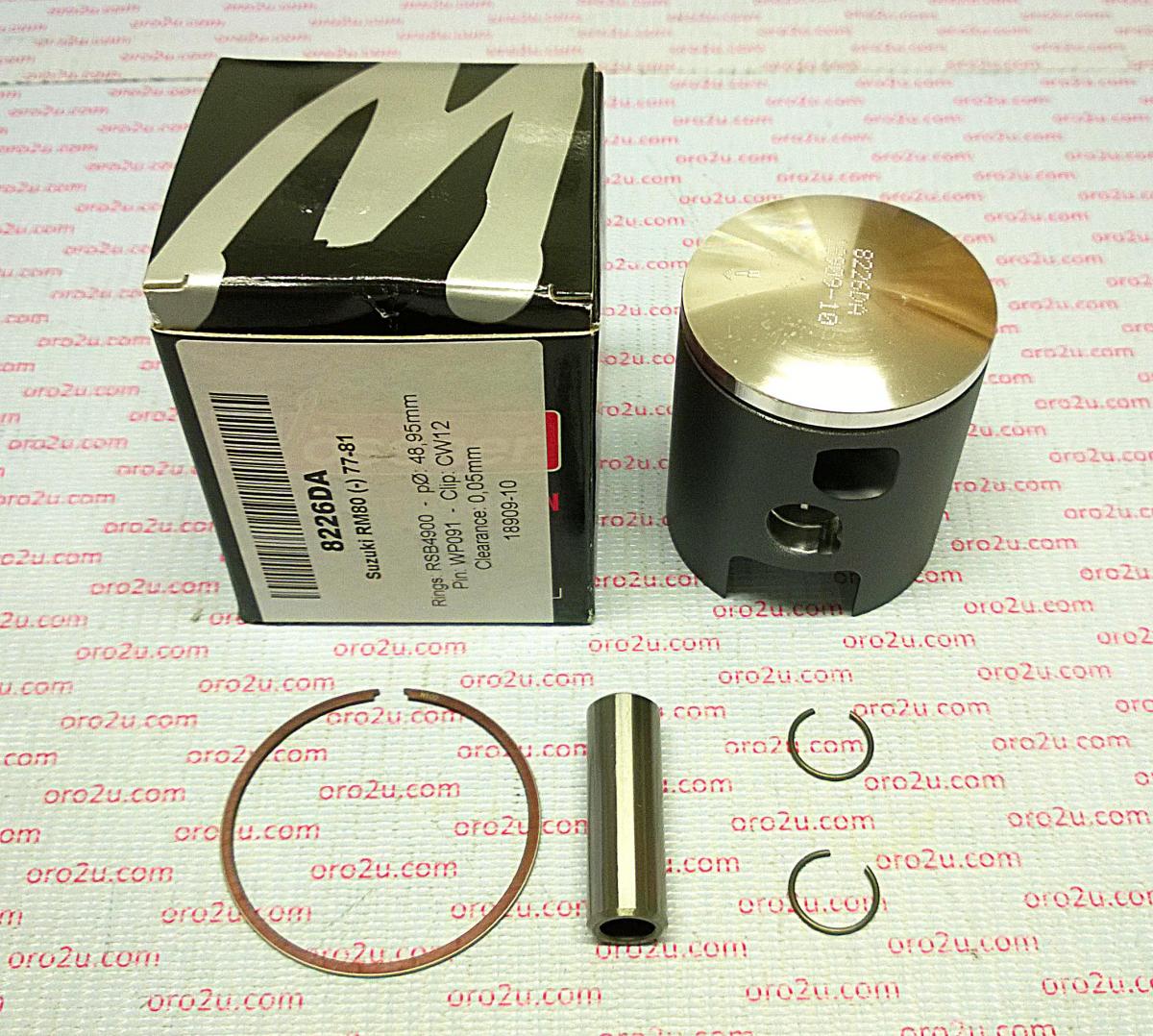

PISTON KIT 77-81 RM80 50.00, FORGED WOSSNER 8226D100

Piston kit 50mm Bore 49.95 Wossner 8226D100 (+1.00)

SUZUKI
RM80 1977 - 1981,
DS80 2000,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W456+100.WO (oro2u.com)
Wossner Piston Suzuki RM80 (PN# 8226D100)
Lock P/N CW12
Pin P/N WP091
Ring Set P/N RSB5000

Display (cm3) 80
Hub stroke (mm) 42.00
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.50
Theorectical weight (G)
