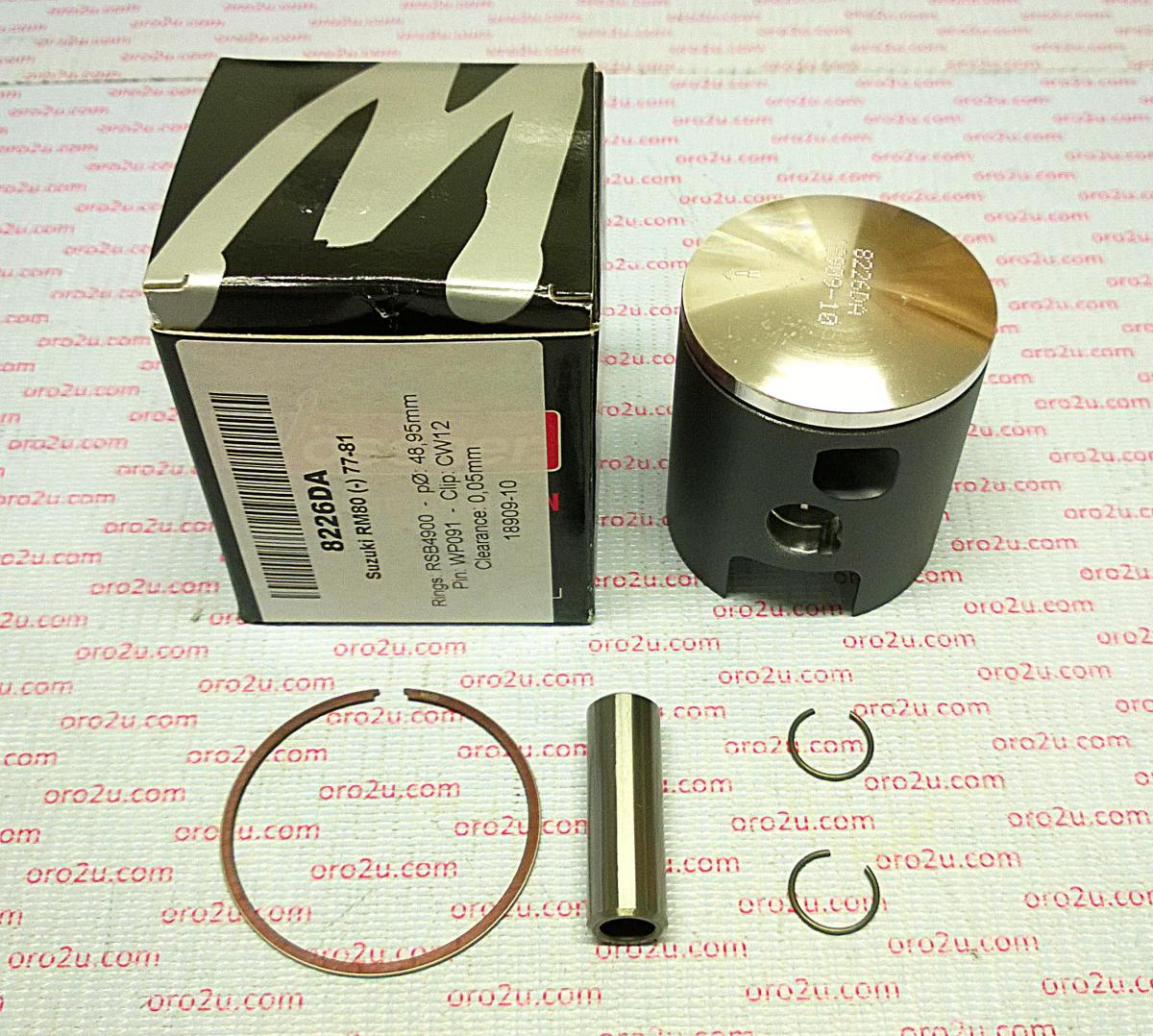

PISTON KIT 77-81 RM80 49.50, FORGED WOSSNER 8226D050

Piston kit 49.50mm Bore 49.45 Wossner 8226D050 (+0.50)

SUZUKI
RM80 1977 - 1981,
DS80 2000,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W456+050.WO (oro2u.com)
Wossner Piston Suzuki RM80 (PN# 8226D050)
Lock P/N CW12
Pin P/N WP091
Piston ring: RSB4950

Display (cm3) 80
Hub stroke (mm) 42.00
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.50
Theorectical weight (G)
