Wiseco Forged Piston Kit 66.50 mm for Yamaha IT175 1976–1981 374M06650

Wiseco 374M06650 is a piston kit for a 66.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 374M06650
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 66.50 MM
• Piston Diameter: 66.45 MM
• Piston Oversize: 0.50 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2618CD, Piston pin #S259, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

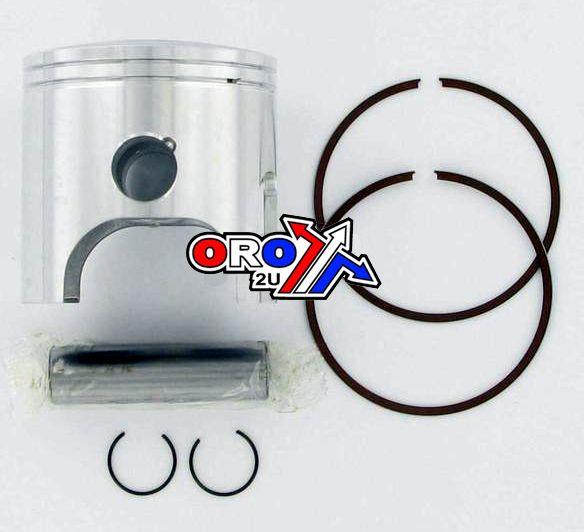

Manufacturer photograph for this reference. Packaging presentation may change.
