Wiseco Forged Piston Kit 59.00 mm 10:1 CR for Honda CB550 K 1974–1978 40059M05900

Wiseco 40059M05900 is a piston kit for a 59.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 40059M05900
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 59.00 MM
• Piston Diameter: 58.95 MM
• Piston Oversize: 0.50 MM
• Piston Material: 4032
• Skirt Coating: No
• Compression Ratio Actual: 10:1

Included components

Ring Set #2323XE, Piston pin #S525, Circlip #CW15.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

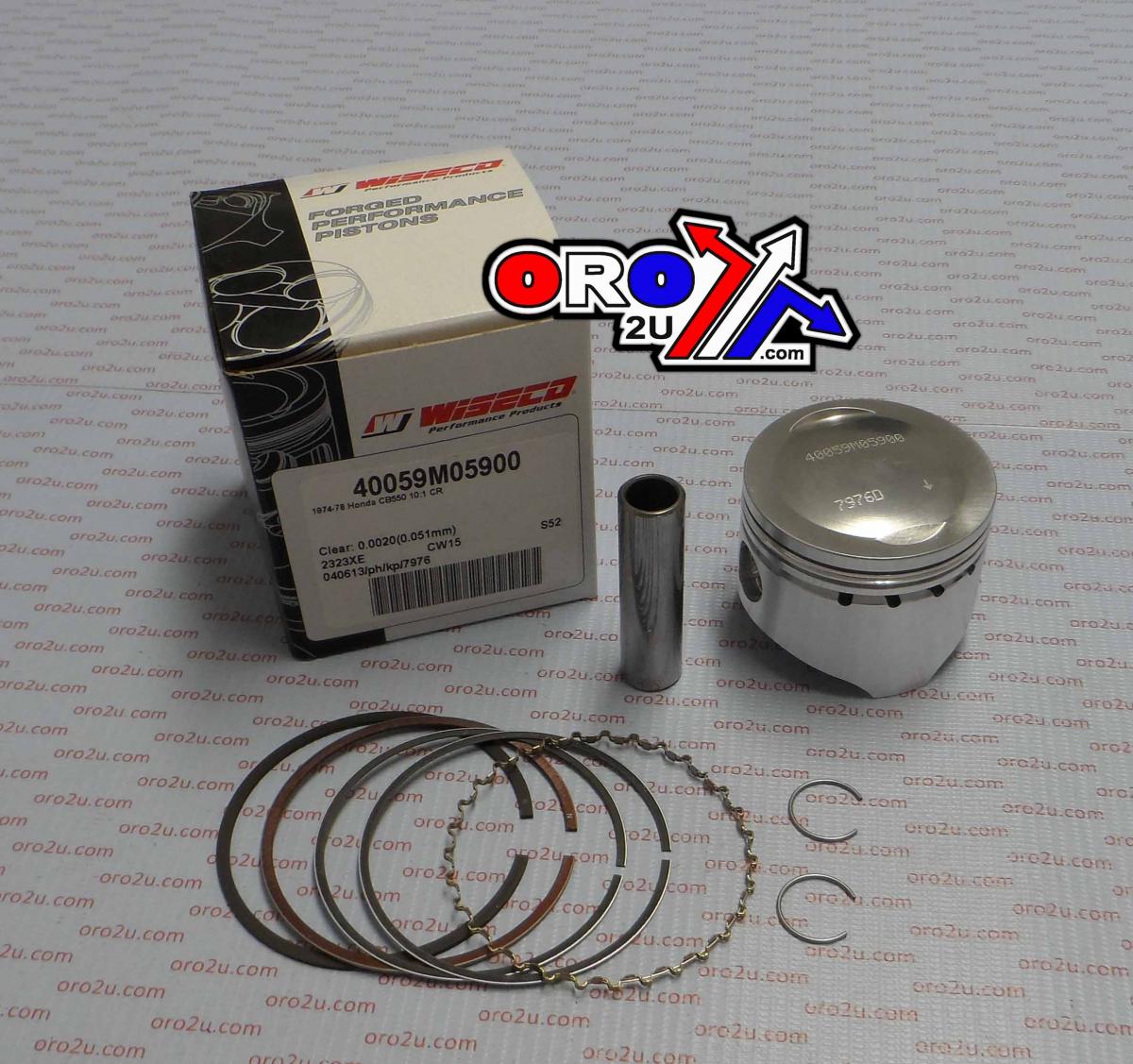

Manufacturer photograph for this reference. Packaging presentation may change.
