PISTON KIT 74-75 YAMAHA YZ 250 71.0mm +1.0mm OVER VINTCO PSY34-1.0

This VintCo piston kit is for 1974-1975 Yamaha YZ250 models and provides a forged replacement piston assembly for vintage 2-stroke engines in 71.0 mm, +1.0 mm oversize. It includes the piston, rings, pin and clips, while the wrist pin bearing is available separately. The kit is made in Germany using modern materials and manufacturing techniques for OEM-style fitment and performance, and the supplied rings are intended for Nikasil-plated or iron-lined cylinders rather than the original chrome-plated Yamaha cylinder.

Features

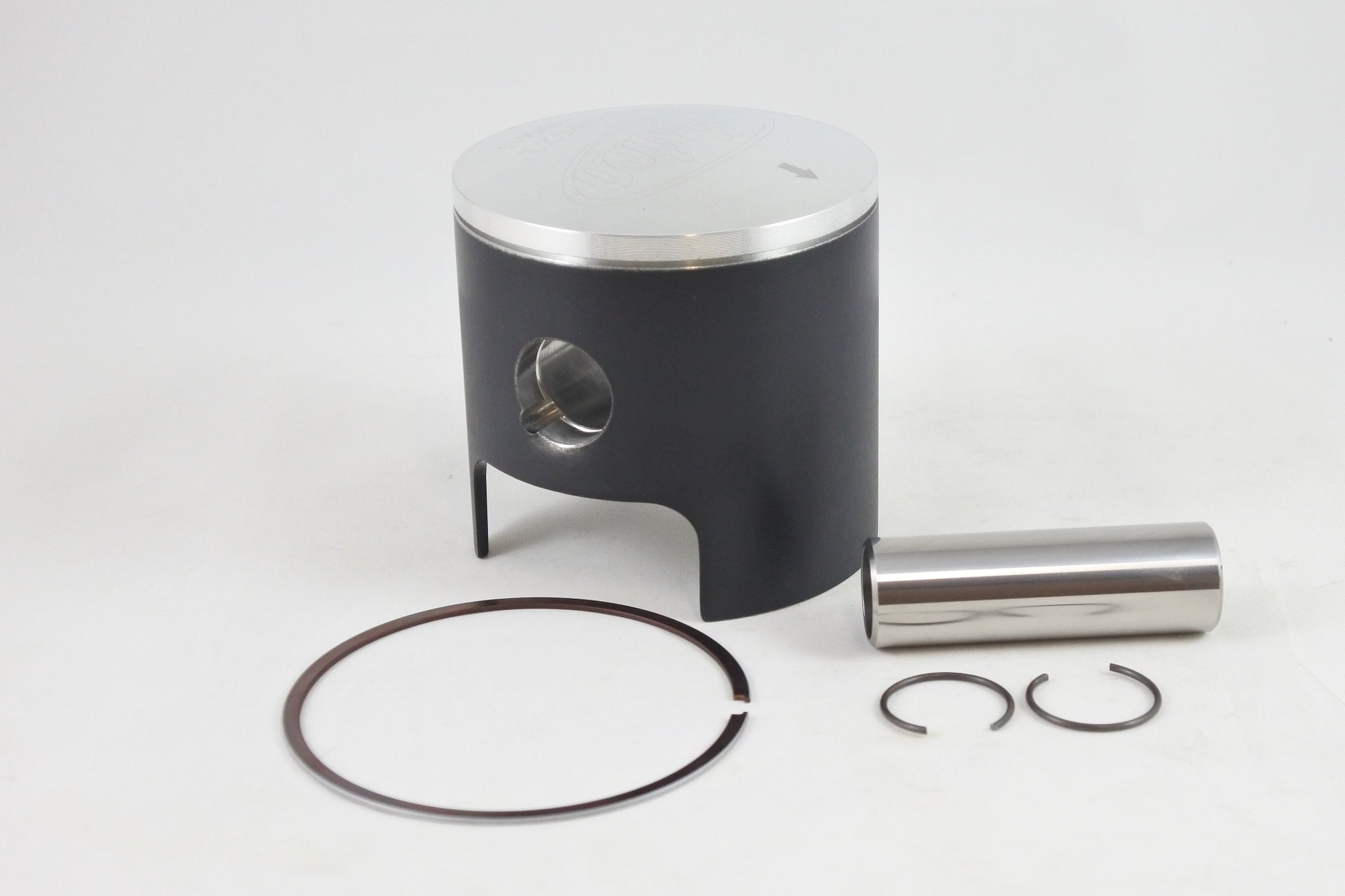

• Complete piston kit with piston, rings, pin and clips
• Wrist pin bearing sold separately
• Suitable for vintage 2-stroke Yamaha YZ250 applications
• Compatible with Nikasil-plated or iron-lined cylinders
• Rings are not compatible with the original chrome-plated Yamaha cylinder on 1974-1975 YZ250 models
• Additional size options are available

Specifications

• VintCo Part Number: PSY34-1.0
• Piston size: 71.0 mm
• Oversize: +1.0 mm
• Piston measurement: 70.94 mm
• Clearance: 0.06 mm
• Construction: Forged piston
• Coating: MoS2 coated for break-in
• Country of manufacture: Germany

Vehicle Fitments

• 1974 Yamaha YZ250
• 1975 Yamaha YZ250
