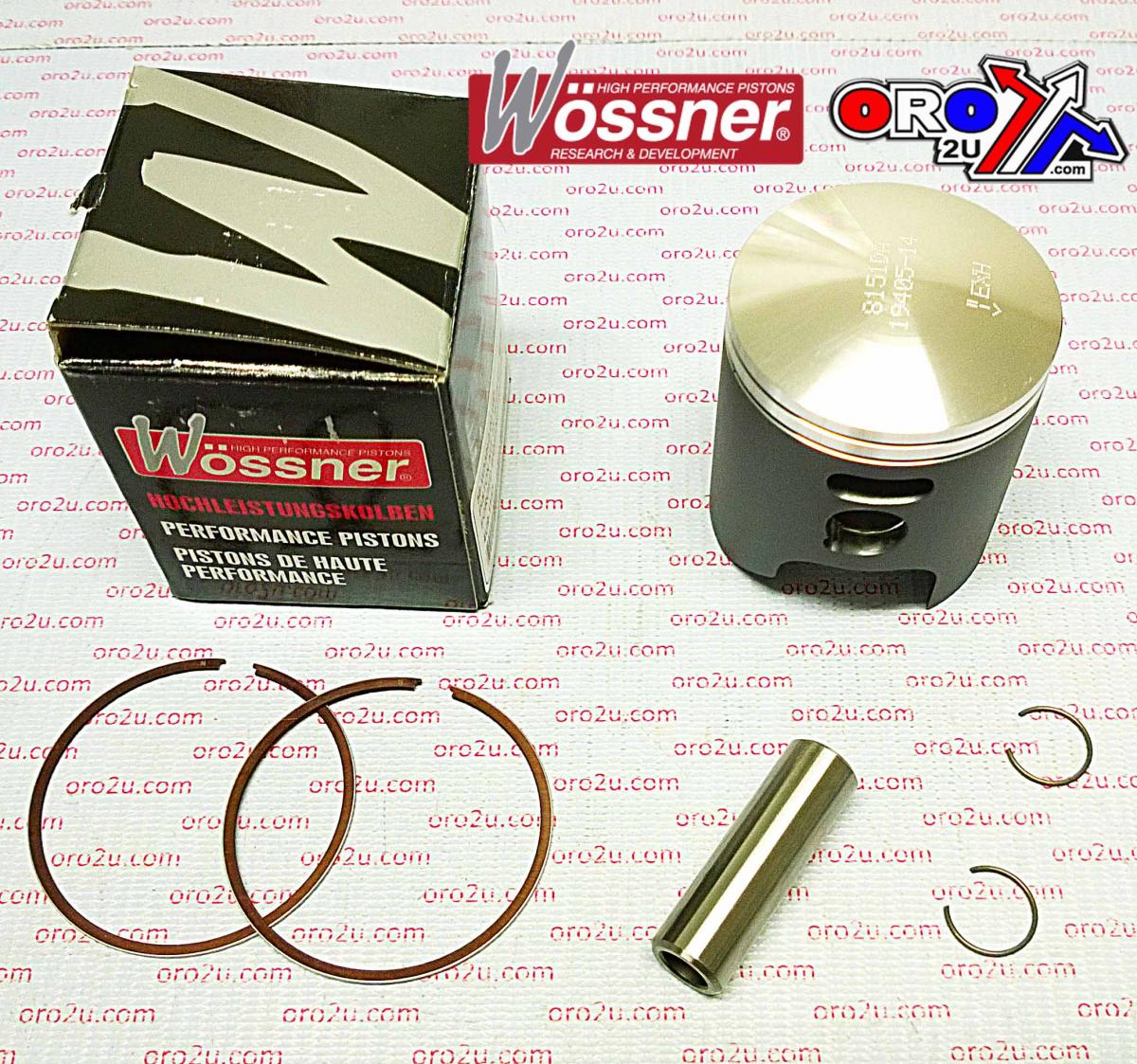

PISTON KIT 73-78 CR125 56.00, FORGED WOSSNER 8151DA

Piston Kit 56.00mm Bore 55.94 Wossner 8151DA (STD)

HONDA
CR125 1973-1978,
MT125 1973-1978,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W339+0.00.WO (oro2u.com)
Replacement parts
RINGS RSB5600 x2
Clips. CW14 / set
Pin. WP025

Display (cm3) 123
Hub stroke (mm) 64.40
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 32.00
Theorectical weight (G)

Cross reference numbers ONLY.
339M05600,
