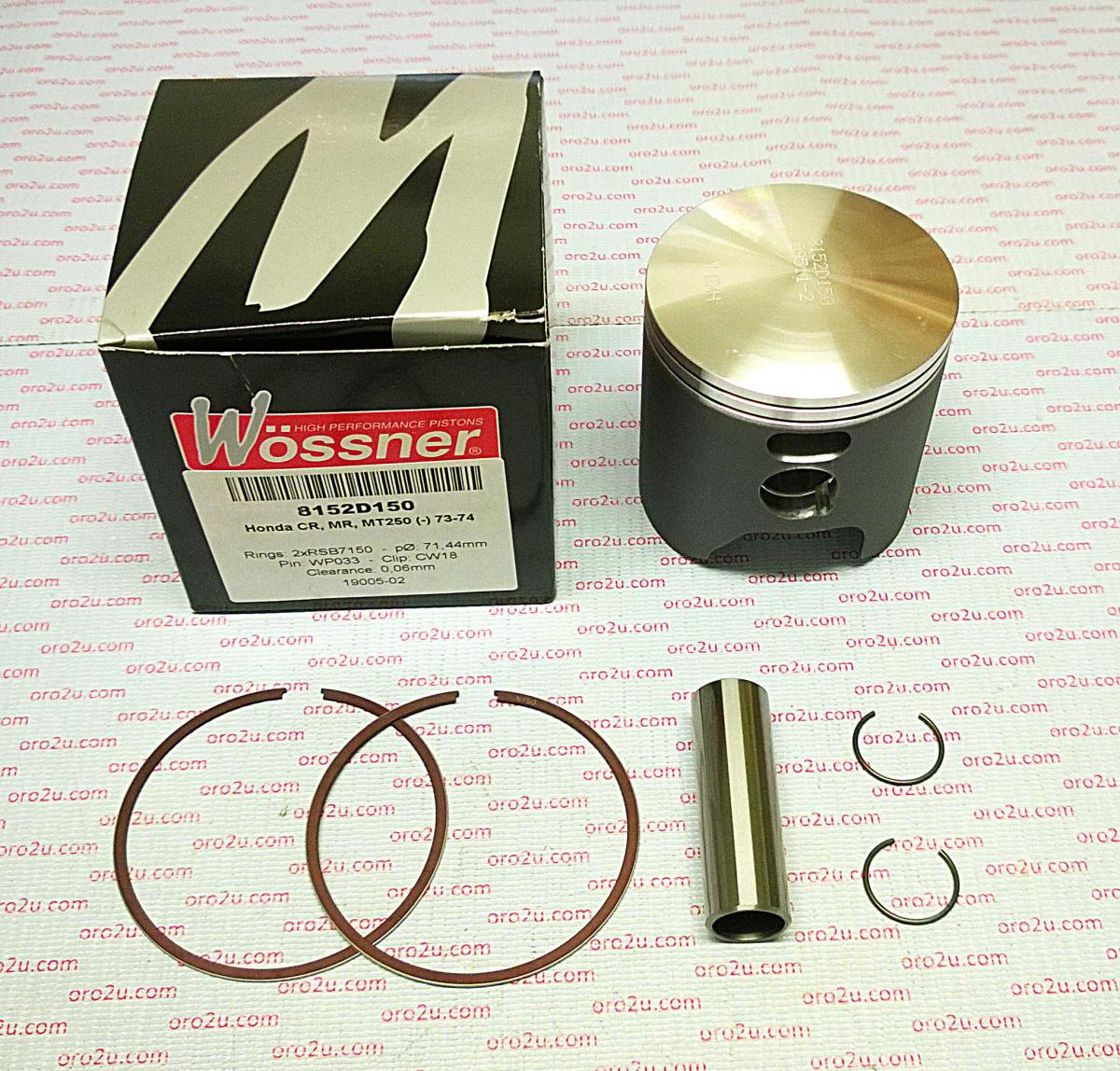

PISTON KIT 73-74 CR250 72.00, FORGED WOSSNER 8152D200

Piston kit 72mm Bore 71.84m Wossner 8152D200 (+2.00mm)

HONDA
CR 250 R 1973 - 1974,
MR 250 1973 - 1974,
MT 250 1973 - 1974,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W337+200.WO (oro2u.com)
Wossner Piston Honda CR250 72 mm Bore (PN# 8152D200)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB7200 x 2

Display (cm3) 248
Hub stroke (mm) 64.40
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 32.00
Theorectical weight (G)
