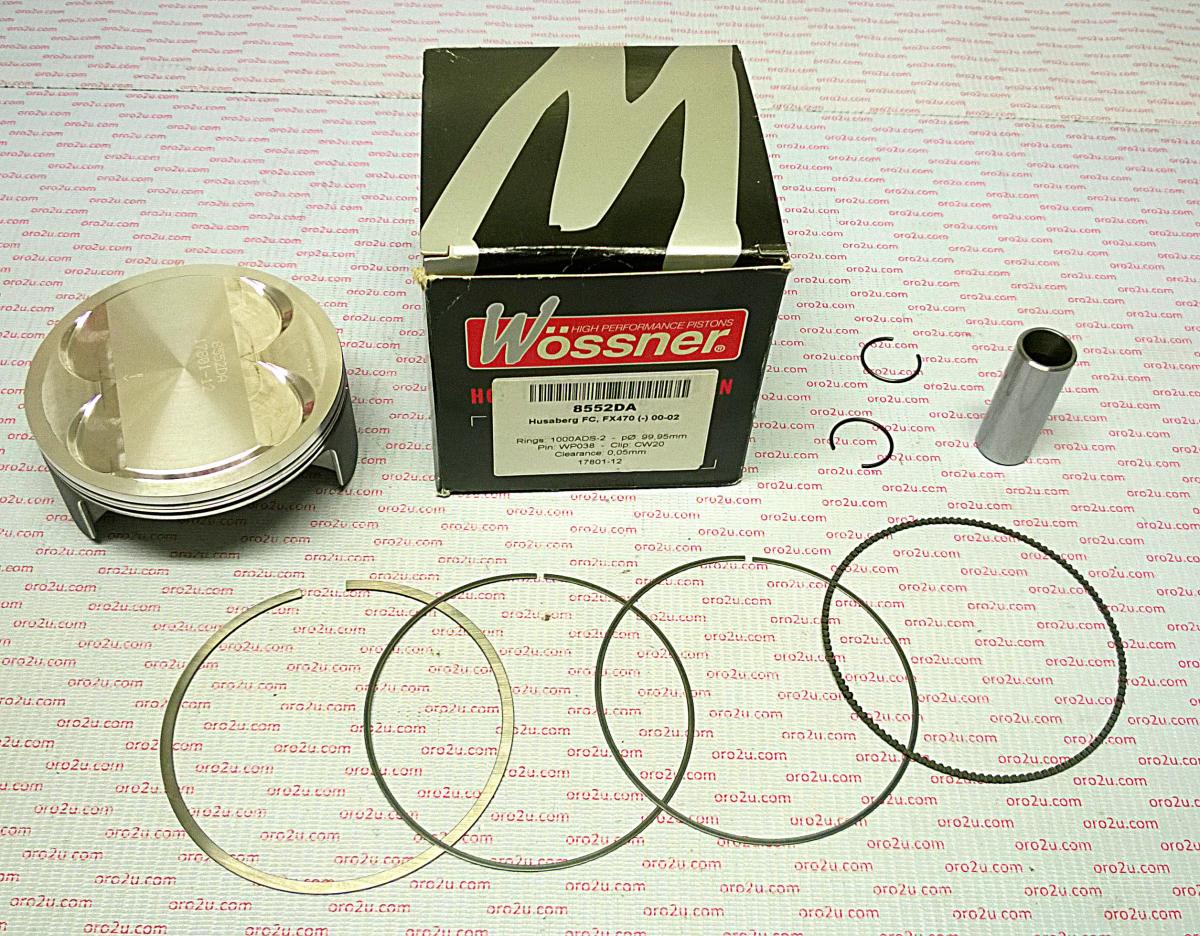

PISTON KIT 470 100.00mm HUSA, WOSSNER 8552DA HUSABERG

HUSABERG

• FC 400: 2000 - 2002
• FX 470: 2000 - 2002

Features:

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

• Wossner Piston: Husaberg FC470 100 mm Bore (PN# 8552DA)
• Lock P/N: CW20
• Pin P/N: WP038
• Ring Set P/N: 1000ADS

Specifications:

• Display (cm3): 472
• Hub stroke (mm): 60.10
• Clearance (mm): 0.05
• Wossner compression Ratio: OEM
• OEM Compression ratio: 12.40:1
• Dome volume (cm3): +5.60
• Compression height (mm): 22.60
