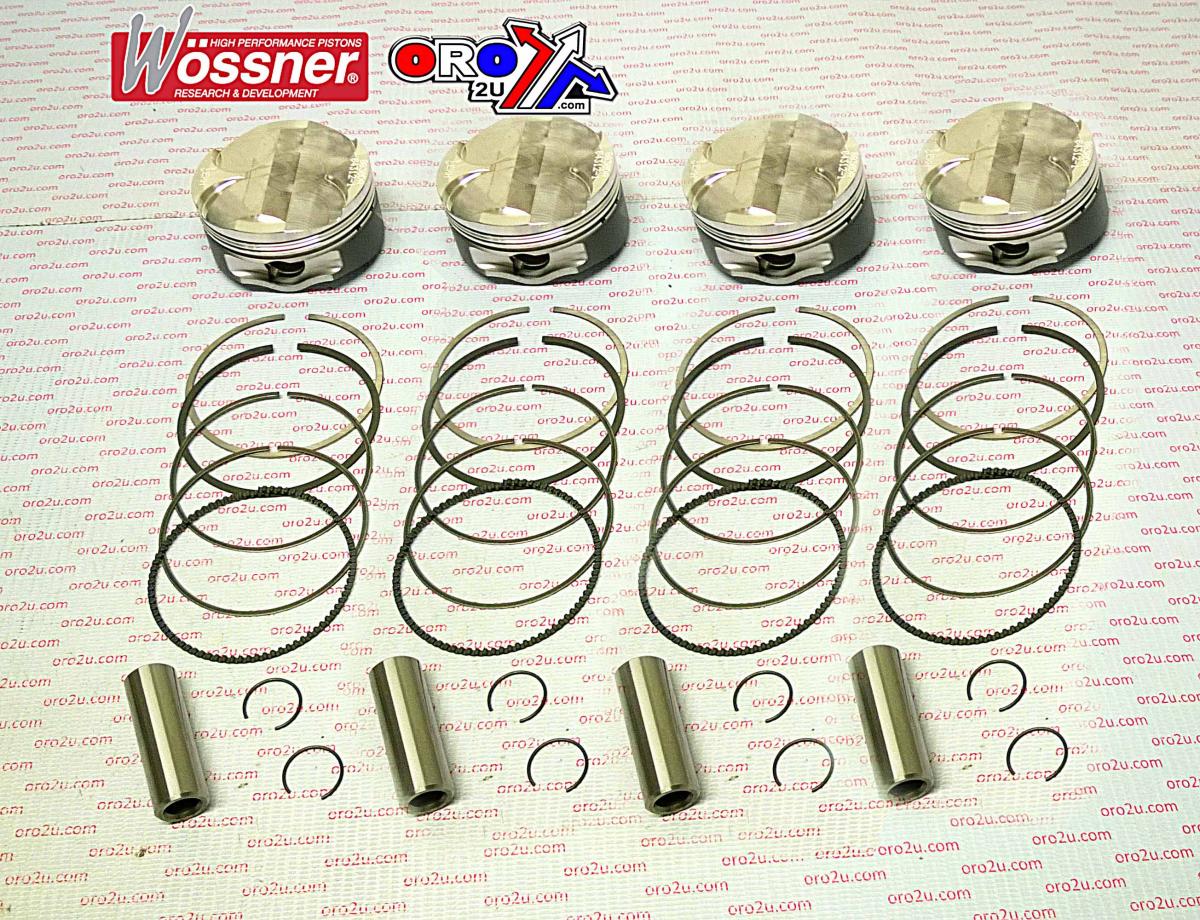

PISTON KIT/4 YAM YZF R6 68.00, WOSSNER K8830D100-4

YAMAHA
YZF R6 2006-2011,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9874.100.WO (phoenixmotos.com)
YAMAHA YZF R6 2006-2011 4 Stroke, Comp. 13:1
WOSSNER FORGED PISTON K8830D100-4
Clip part no - CW15
Piston pin- WP011
Ring set -680XKS

Display (cm3) 599 / 617 / 635
Hub stroke (mm) 42.50
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 13.00:1
Dome volume (cm3) -2.00
Compression height (mm) 21.20
Theorectical weight (G)
