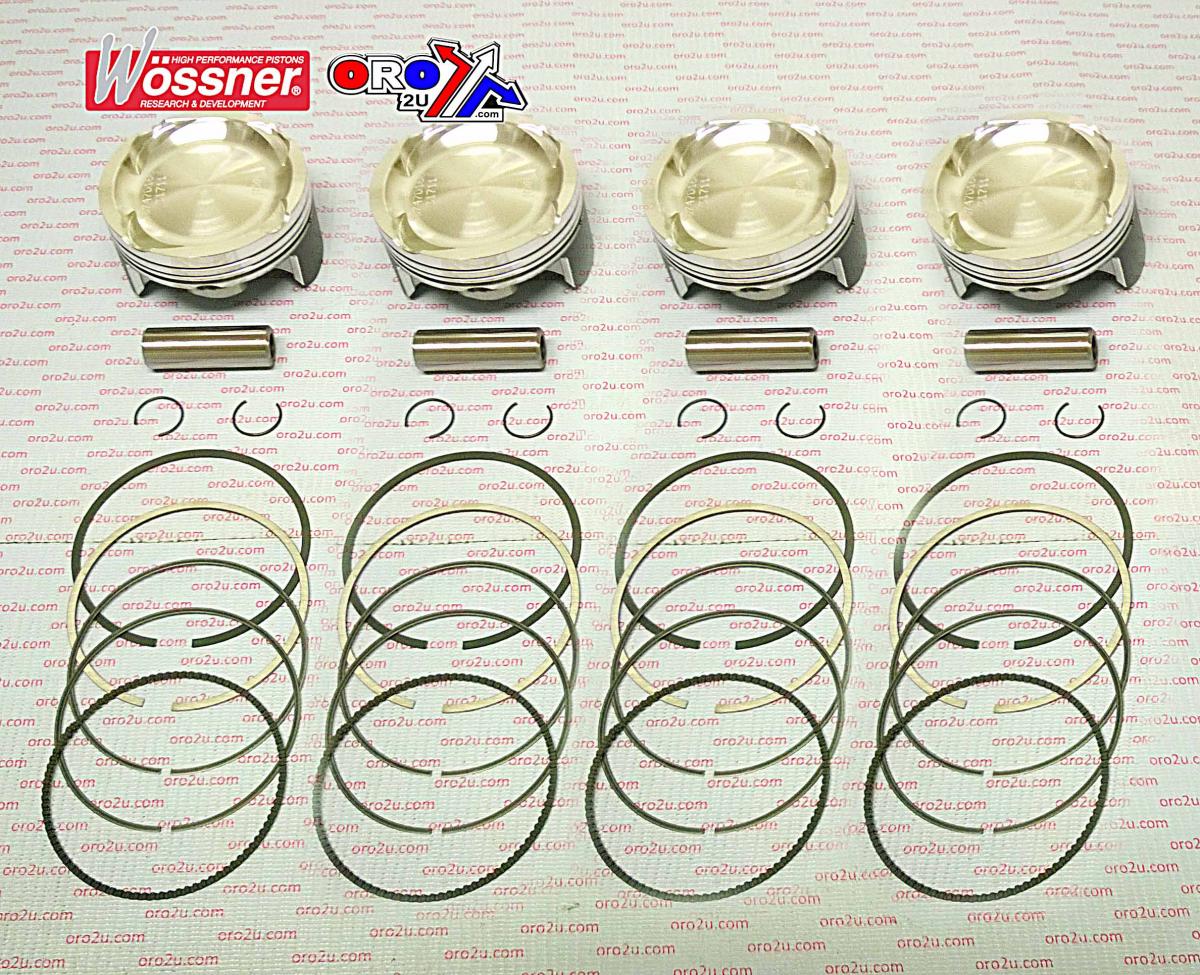

PISTON KIT/4 SUZ GSXR1000 TURB, WOSSNER K8747DA-4 73.40mm

SUZUKI
GSXR1000 TURBO 2005-2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9871.000.WO (phoenixmotos.com)
Clip part no - CW15
Piston pin- WP011
Ring set -RIK73.40L

Display (cm3) 998 / 1042 / 1070
Hub stroke (mm) 59.00
Clearance (mm) 0.04
Wossner compression Ratio: 10.00:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) -12.50
Compression height (mm) 22.50
Theorectical weight (G)

WOSSNER FORGED PISTON K8747DA-4 Bore Std Bore: 73.40mm
