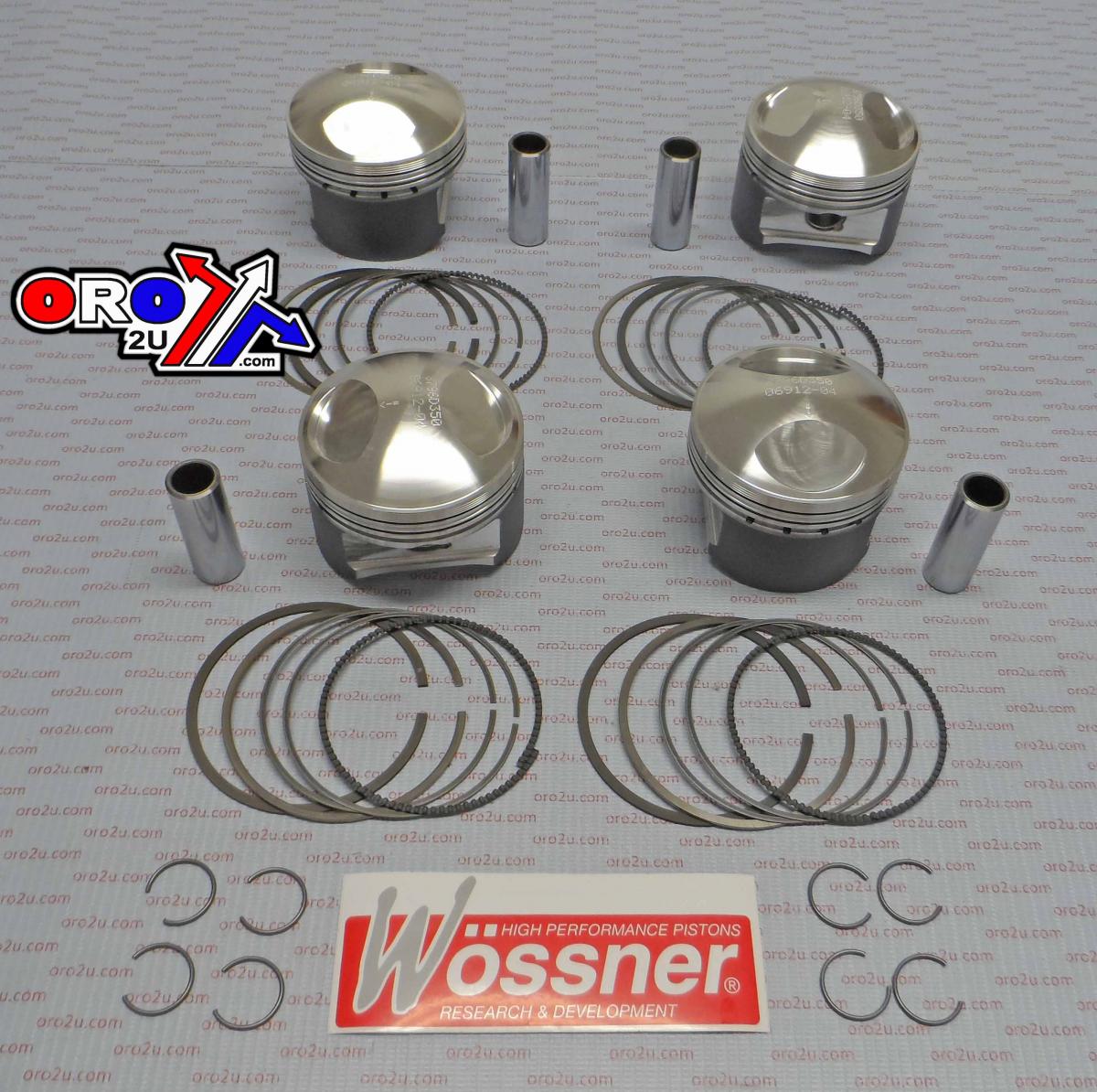

PISTON KIT-4 KZ1000J,R D73.00, WOSSNER K8796D350-4 KAWASAKI

KAWASAKI
KZ1000J 1981 - 1983,
KZ1000R 1981 - 1983,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9934.350.WO (phoenixmotos.com)
Kawasaki KZ1000J (1981-1983) KZ1000R (1981-1983)
FEATURES: 1075-1105cc Discplacement / 72.94mm Piston Size / 10.25:1 Compression Ratio
WOSSNER K8796D350-4 PISTON KIT SET/4.
SIZE BORE [72.94] 73.00mm

Clips P/N CW17
Pin P/N WP083
Ring Set P/N 730XDS

Display (cm3) 1075 / 1105
Hub stroke (mm) 66.00
Clearance (mm) 0.06
Display cm3 / Wossner compression Ratio: 1075 / 10.30:1 - 1105 / 10.50:1
OEM Compression ratio: 9.20:1
Dome volume (cm3) 18.80
Compression height (mm) 18.80
Theorectical weight (G) 25.30

Wossner high performance forged pistons, are world leaders in piston research and development. As used by many race teams Wossner forged pistons are designed to operate at the highest levels of motorsport and competition. You can have confidence in your engine when you are running Wossner pistons. Wossner piston kits come complete with rings,pins and circlips ready for fitting.

Cross reference numbers ONLY. Bore Size: 73mm Piston Size: 72.94mm Clearance: 0.06mm Compression Height: 25.3mm Compression Ratio: 10.25:1 Compression Ratio (OEM): 9.2:1 Engine Cylinders: 4
