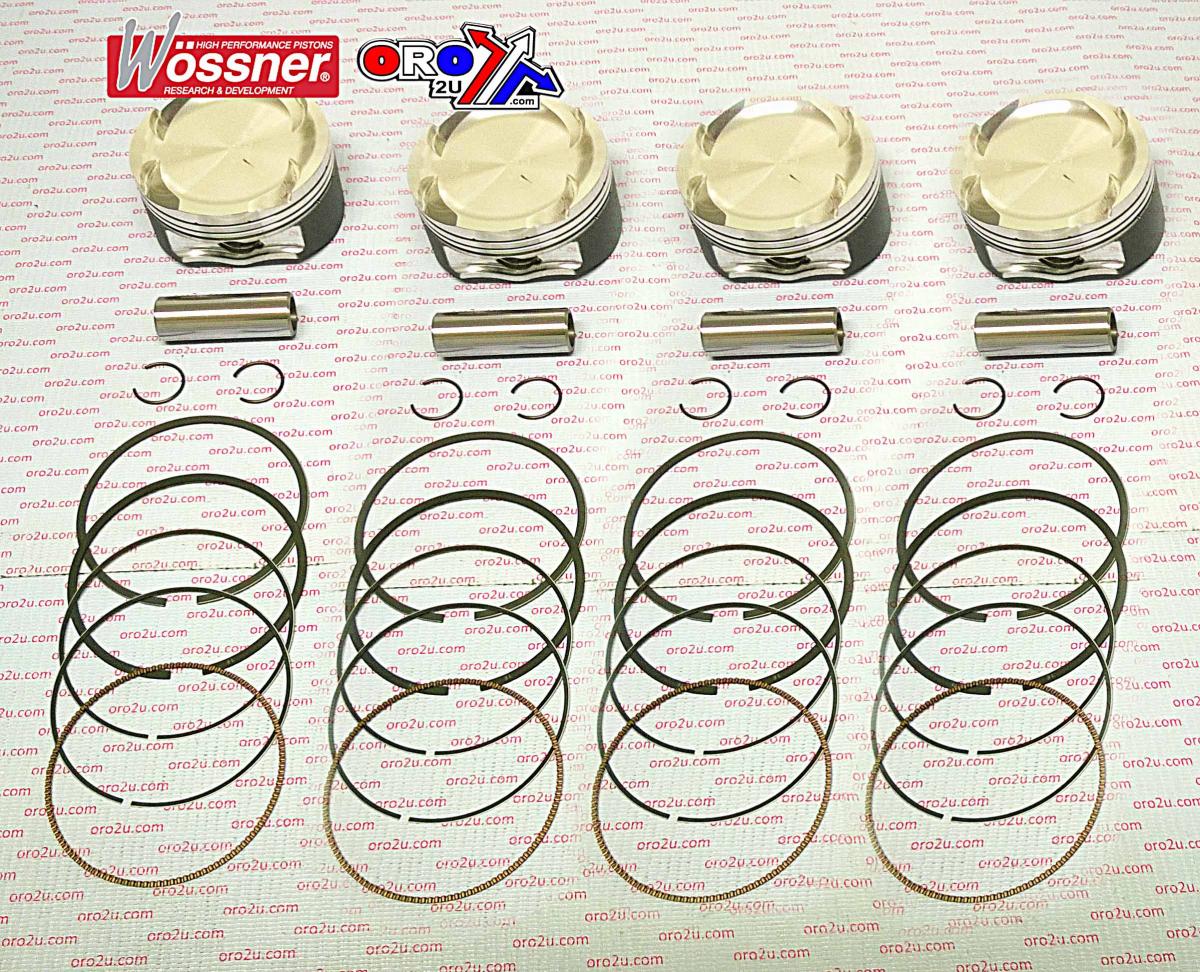

PISTON KIT/4 KAW KZ10R C TURBO, WOSSNER K8767D200-4 48mm

KAWASAKI
ZX10R Turbo (2008-10)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9872.000.WO (phoenixmotos.com)
Clip part no - CW17
Piston pin- WP090
Ring set -780XAS

Display (cm3) 998 / 1051
Hub stroke (mm) 55.00
Clearance (mm) 0.06
Wossner compression Ratio: 10.00:1
OEM Compression ratio: 12.70:1
Dome volume (cm3) -9.30
Compression height (mm) 22.70
Theorectical weight (G)
