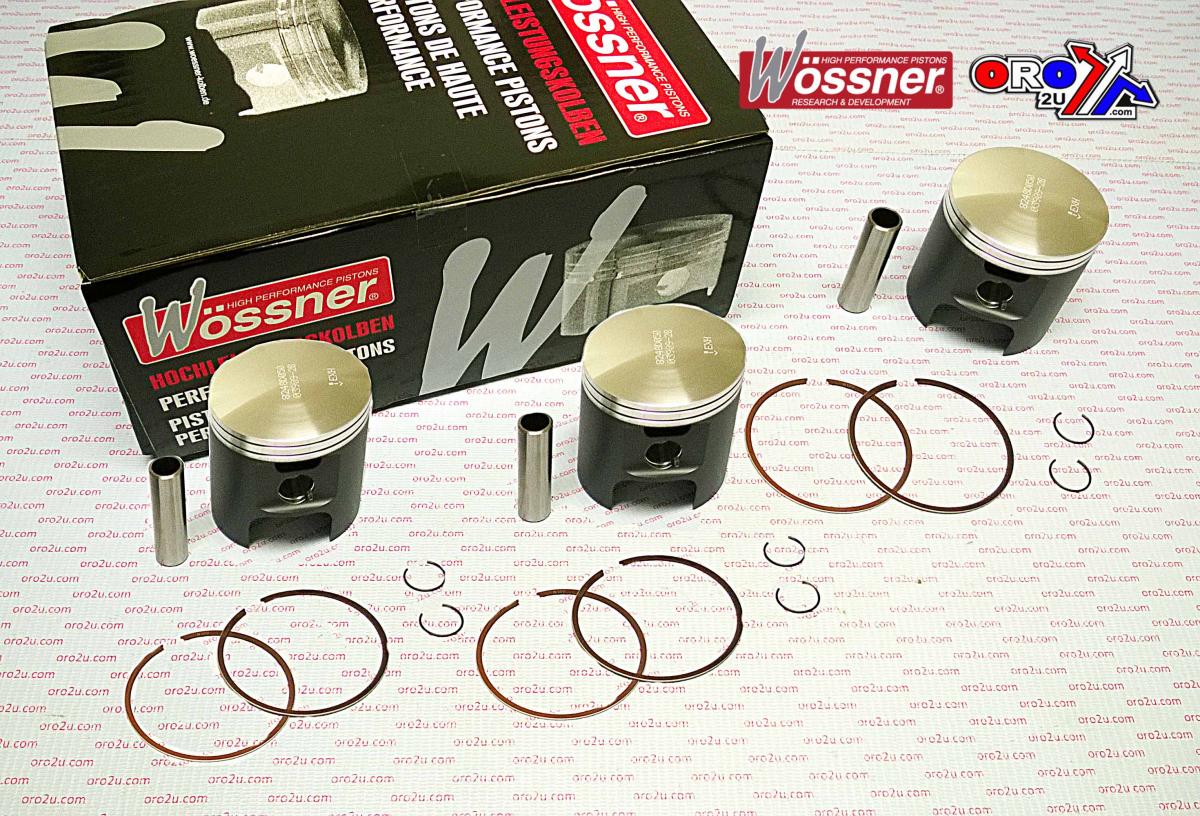

PISTON KIT/3 750 TRIPLE 72.50, WOSSNER K8248D150-3 1972-75

Kawasaki
750 Mach iv 1972 - 1975,
H2 750 Triple Cylinder 1972-1975 2 Stroke Classic,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9868.150.WO (phoenixmotos.com)
Clip part no - CW16
Piston pin- WP027
Ring set - RSB7250 x 2

Display (cm3) 747
Hub stroke (mm) 63.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 32.00
Theorectical weight (G)
