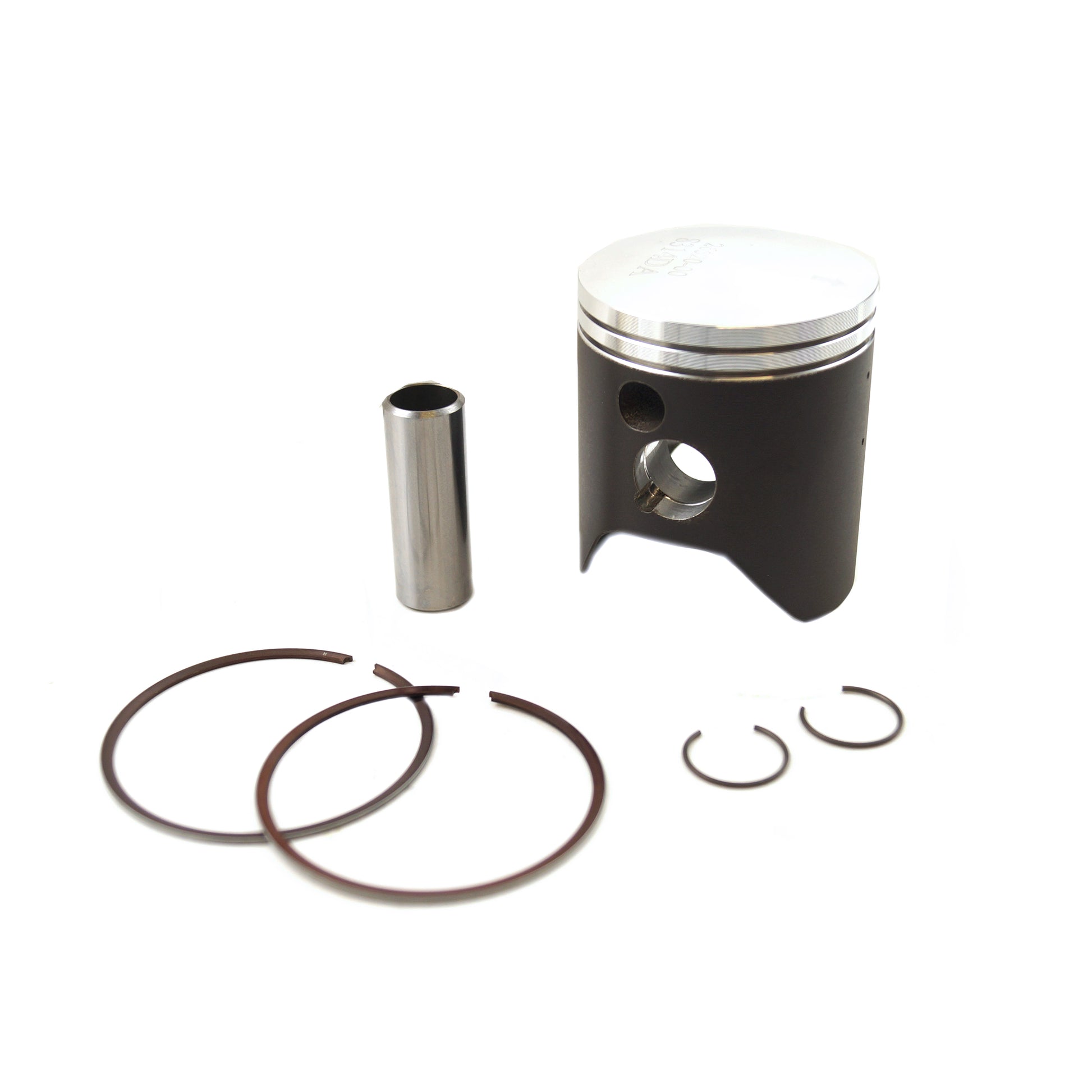

PISTON KIT 2020 MX125 EN125 125 54MM, WOSSNER 8314DC TM

WOSSNER 8314DC

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

PISTON SIZE: 53.96MM

OVERSIZE: +0.02MM

CLEARANCE: 0.06MM

STROKE: 54.50

COMPRESSION HEIGHT: 29.10MM

THEORETICAL WEIGHT: 127.00G

RING SET: RSVS400

CLIPS: CW15

PIN: WP067

Wossner is the innovative specialist for high performance pistons and cylinder blocks. Wossner products are to be found in engines operating at the highest levels of motor sport competition and in everyday use.Wossner products are the source of the superior power behind the success of well known motor sport teams at national and international race meets.

Cross reference numbers ONLY.
