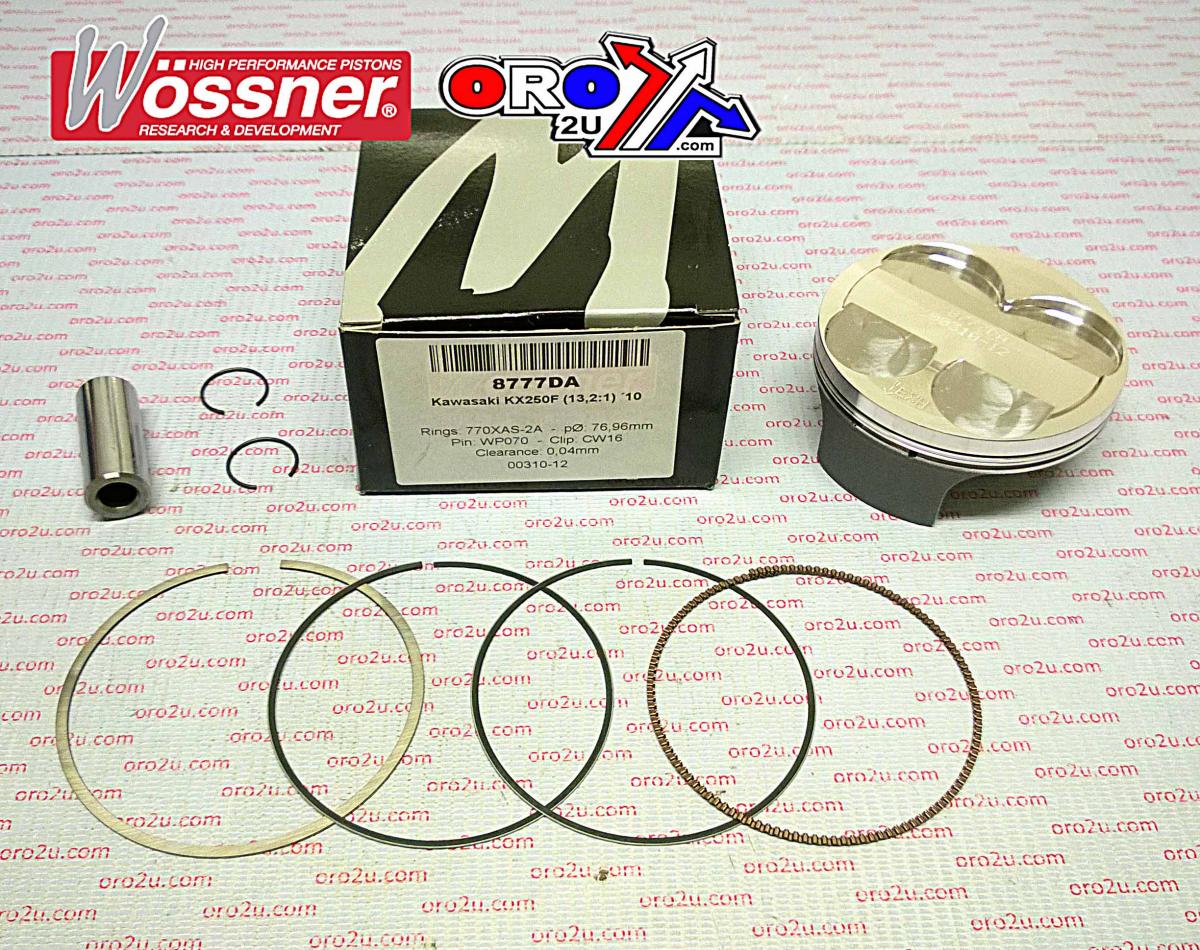

PISTON KIT 2010 KX250F 77mm A, WOSSNER 8777DA KAWASAKI MX 13001-0115

Piston kit 77mm BORE 76.96 Wossner 8777DA (STD)

KAWASAKI
kx250F 2010,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W953.A.WO (oro2u.com) Wossner Piston Kawasaki KX250F 77 mm Bore (PN# 8777DA)
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 770XAS-2

Display (cm3) 250
Hub stroke (mm) 53.60
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 13.20:1
Dome volume (cm3) -2.50
Compression height (mm) 19.60
Theorectical weight (G)

Cross reference numbers. oem
13001-0115, wiseco 40009M, Vertex 23566, Prox01.4340 , 40009M07700
