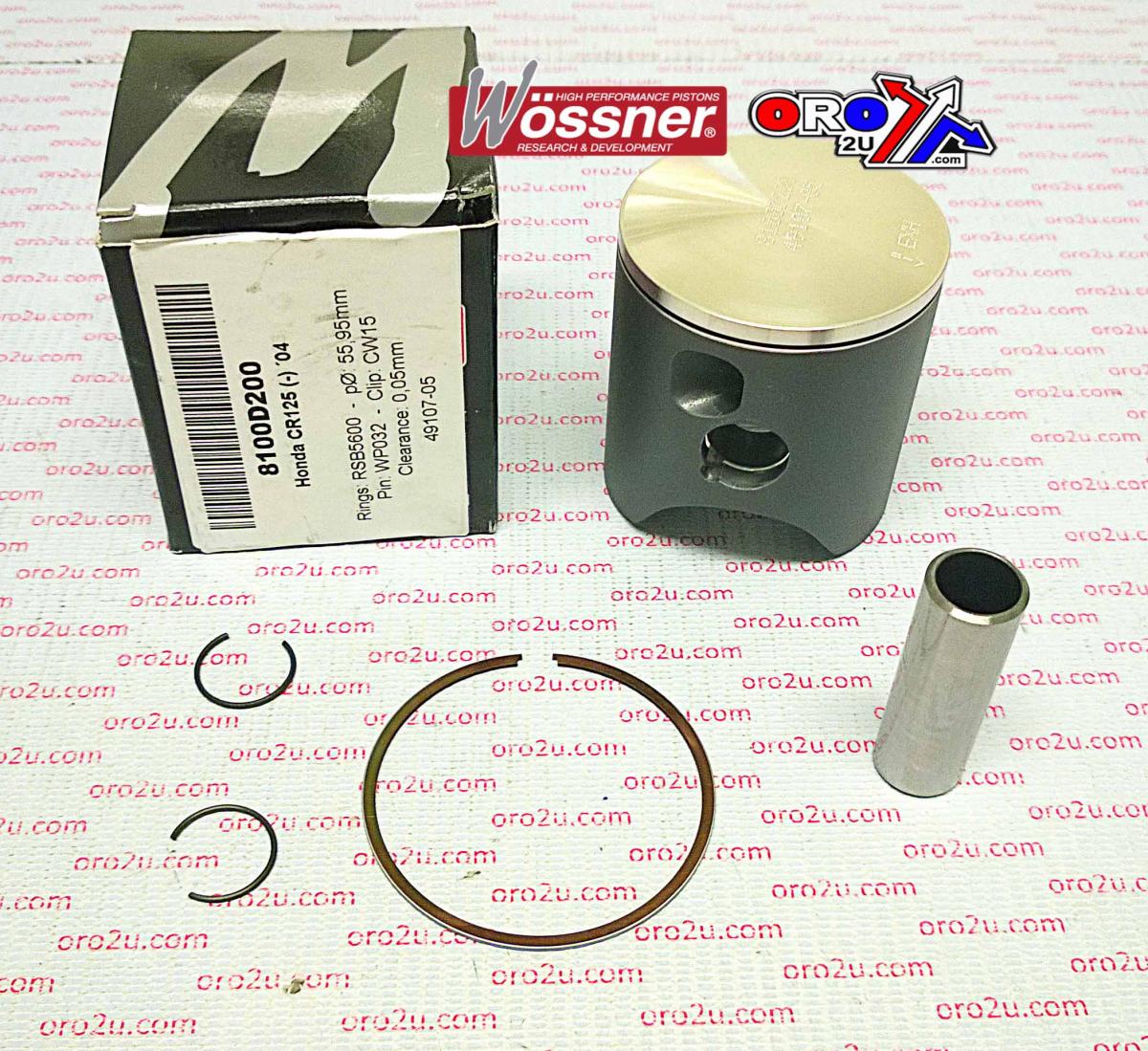

PISTON KIT 2004 CR125 56.00, WOSSNER 8100D200 HONDA MX

Piston Kit 56mm Bore 55.95 Wossner 8100D200 (+2.00)

HONDA
CR125 2004,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W840+200.WO (oro2u.com)
Wossner Piston Honda CR125 56mm Bore (PN# 8100D200)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5600
Rod P/N P2009

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

- 2004 Honda CR 125
