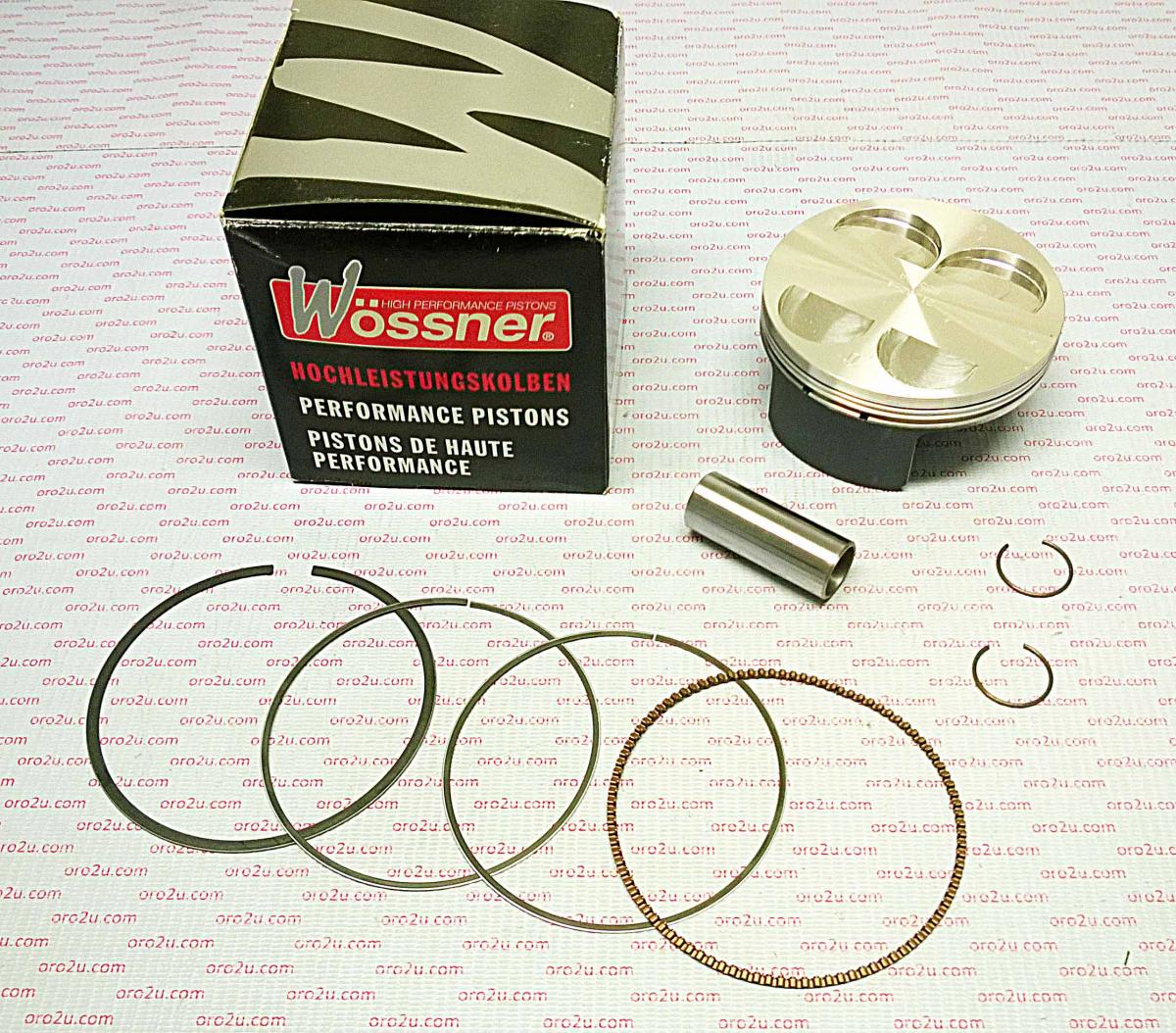

PISTON KIT 2002 450 HC 97.00, WOSSNER 8556DA HUSQVARNA

Piston kit 97.00mm Bore 96.94 WOSSNER 8556DA (STD)

Husqvarna
TC450 2002
TE450 2002
(High compression)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

56-W018.A (oro2u.com)
Lock P/N CW20
Pin P/N WP038
Ring Set P/N 970XSY

Display (cm3) 449
Hub stroke (mm) 60.80
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 12.00:1
Dome volume (cm3) -5.10
Compression height (mm) 24.50
