Wiseco Forged Piston Kit 47.00 mm 11:1 CR for Yamaha YFM80 R Raptor 2002–2008 4841M04700

Wiseco 4841M04700 is a piston kit for a 47.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4841M04700
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 47.00 MM
• Piston Diameter: 46.97 MM
• Piston Oversize: STD
• Piston Material: 4032
• Skirt Coating: No
• Compression Ratio Actual: 11:1

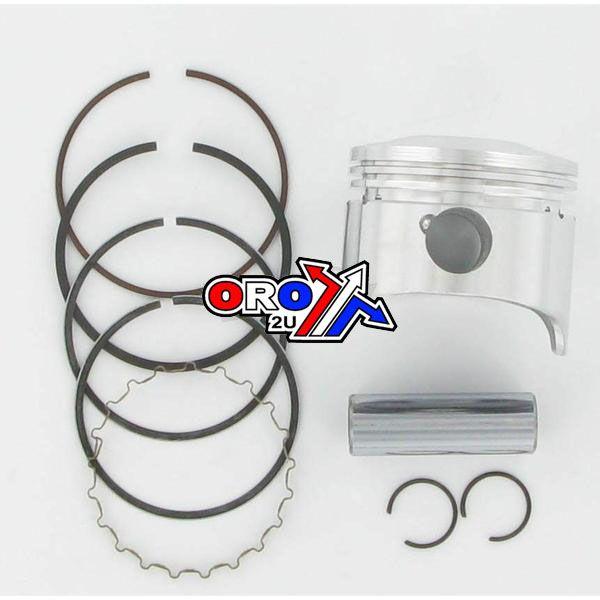

Included components

Ring Set #1850XE, Piston pin #S592, Circlip #CW13.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
