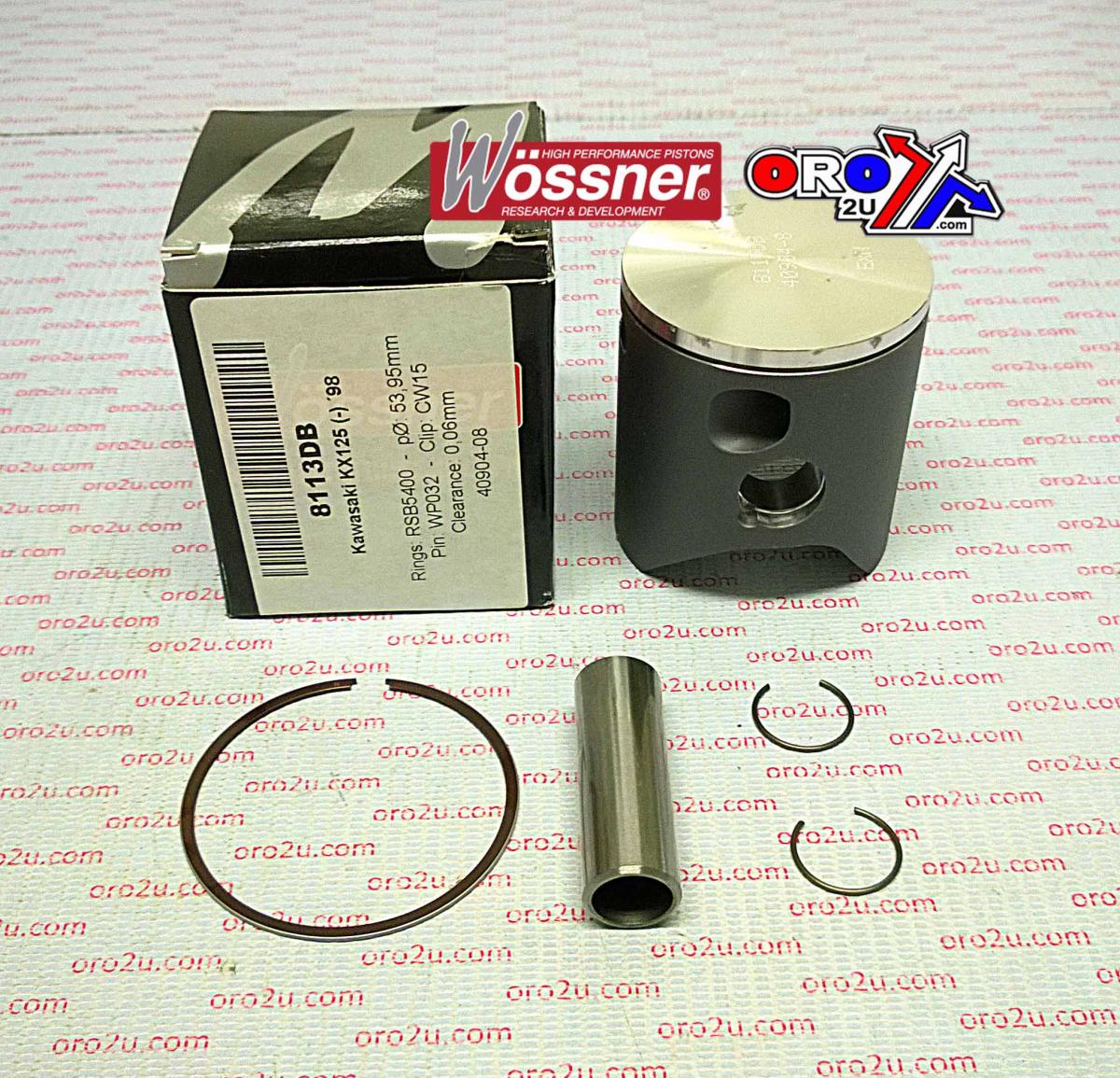

PISTON KIT 1998 KX125 54.00 B, WOSSNER 8113DB KAWASAKI MX

Piston kit 54.01mm Bore 53.95 Wossner 8113DB (+0.01)

KAWASAKI
KX125 1998,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W719+00B.WO (oro2u.com)
Wossner Piston Kawasaki KX125 54.01 mm Bore (PN# 8113DB)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2034

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)
