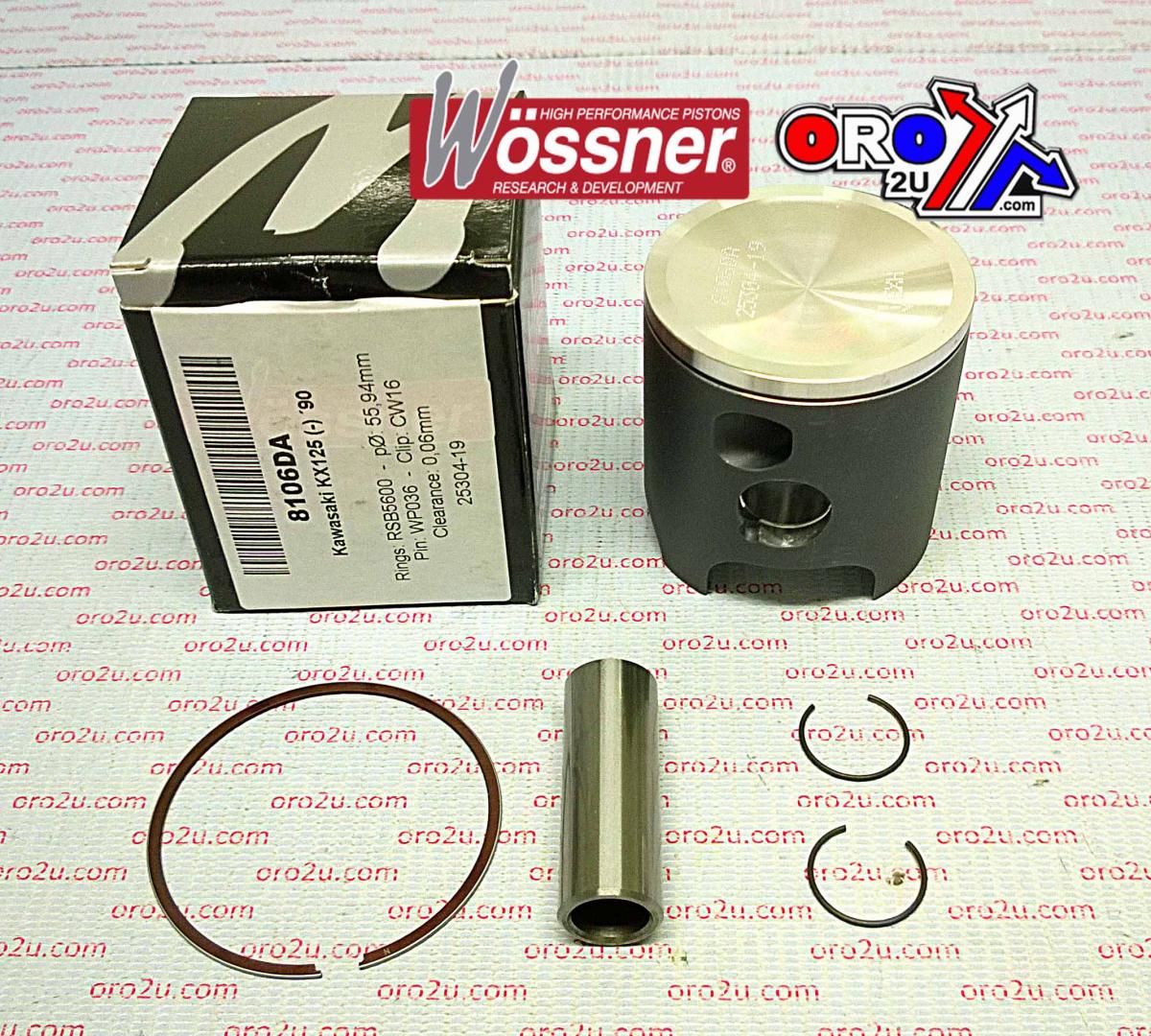

PISTON KIT 1990 KX125 57.00, WOSSNER 8106D100 KAWASAKI MX

Piston kit 57mm Bore 56.94 Wossner 8106D100 (+1.00)

KAWASAKI
KX125 1990,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W589+100.WO (oro2u.com)
Wossner Piston Kawasaki KX125 57 mm Bore (PN# 8106D100)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5700
Rod P/N P2033

Display (cm3) 125
Hub stroke (mm) 50.60
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)
