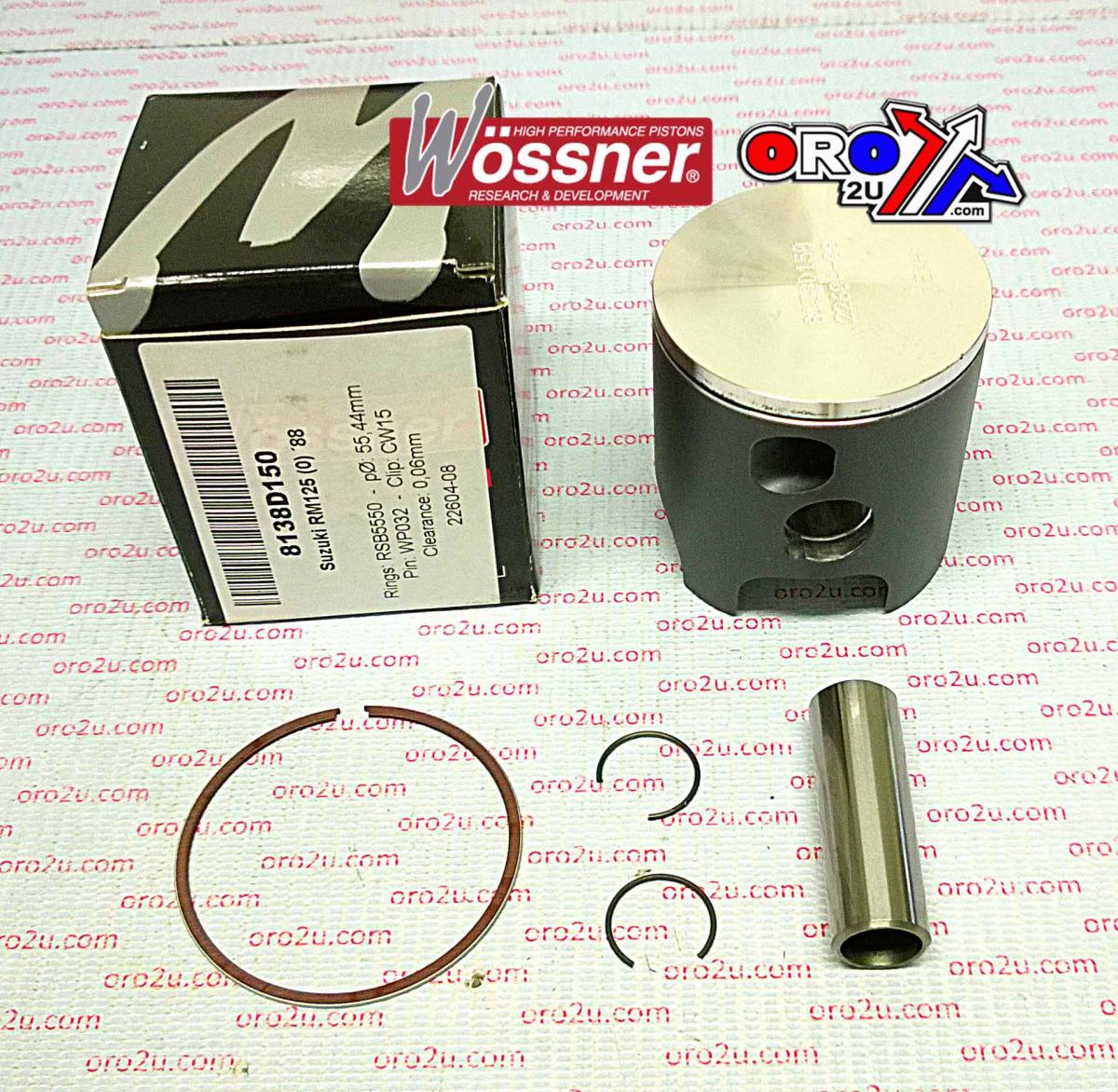

PISTON KIT 1988 RM125 54.50, WOSSNER 8138D050 SUZUKI MX 12110-14513

Piston kit 54.50mm Bore 54.44 Wossner 8138D050 (+0.50)

SUZUKI
RM125 1988,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W568+050.WO (oro2u.com)
Wossner Piston Suzuki RM125 54.50 mm Bore (PN# 8138D050)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5450
Rod P/N P2015

Display (cm3) 123
Hub stroke (mm) 54.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)

Cross reference numbers ONLY.
12110-14513
