PISTON KIT 1987 LT250 69.00, WOSSNER 8258D200 SUZUKI ATV

SUZUKI (ATV)
LT250 1987,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W577+2.00.WO (phoenixmotos.com)

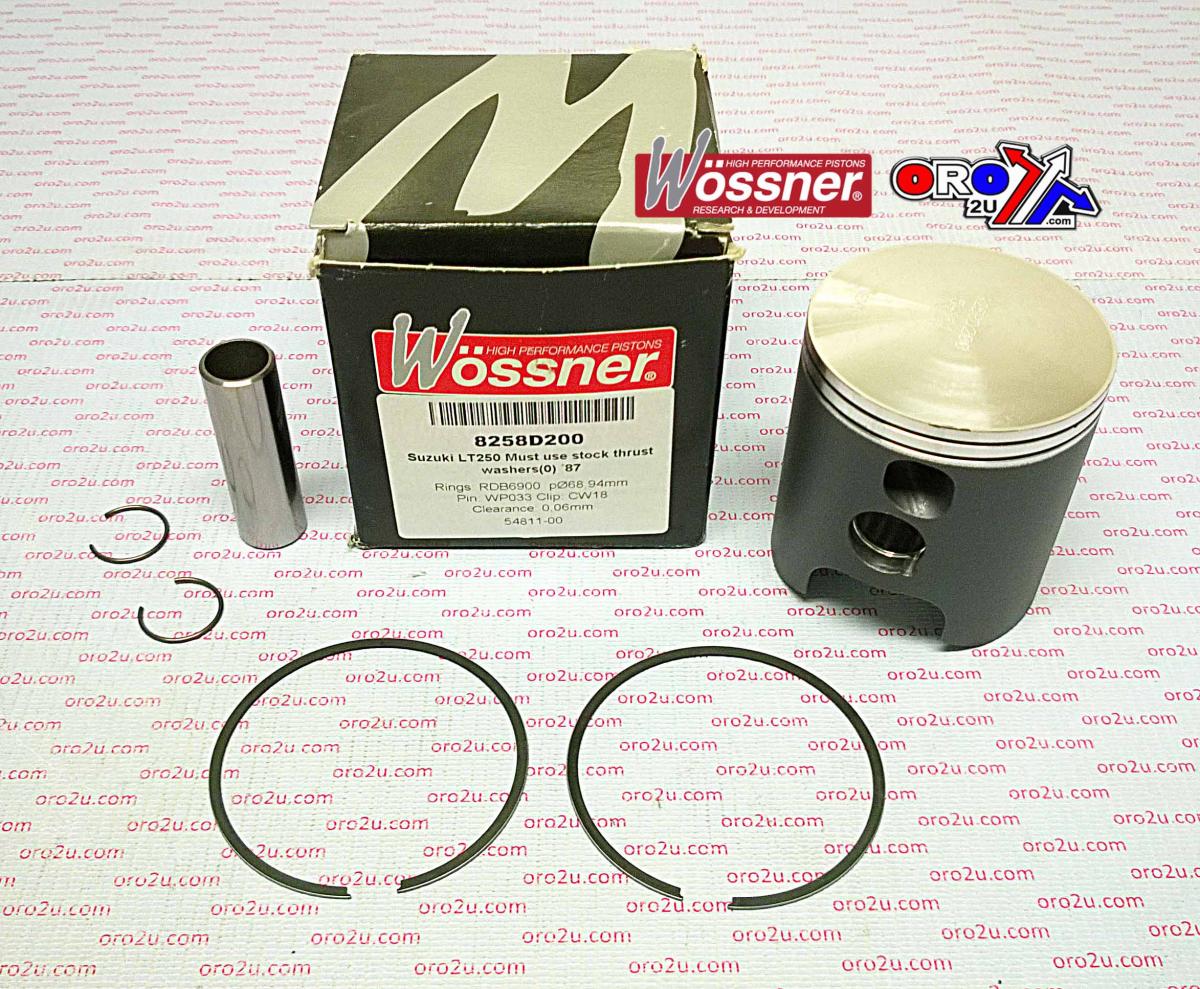

Wossner 69.00mm piston kit Application Suzuki LT250 1987
Wossner part no 8258D200
Ring Set P/N RSB6900 X 2
Lock P/N CW18
Pin P/N WP033

Display (cm3) 246
Hub stroke (mm) 70.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 37.20
Theorectical weight (G)
