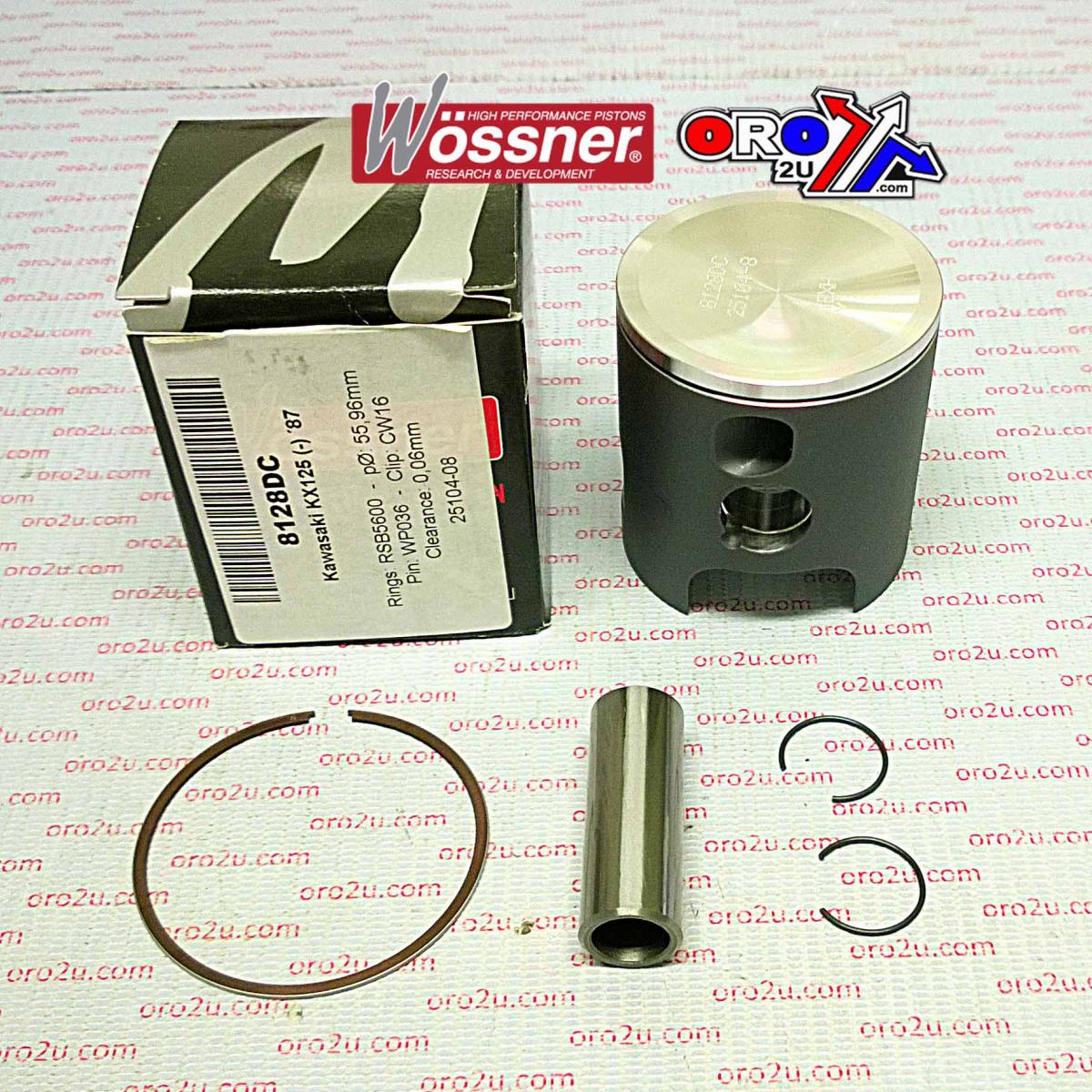

PISTON KIT 1987 KX125 56.50, WOSSNER 8128D050 KAWASAKI MX

KAWASAKI
KX125 1987,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W555+050.WO (phoenixmotos.com)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5650
Connecting Rod P/N P2037

Display (cm3) 125
Hub stroke (mm) 50.60
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)
