Wiseco Pro-Lite Piston Kit 54.50 mm for Honda CR125 R 1987 553M05450

Wiseco 553M05450 is a piston kit for a 54.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 553M05450
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 54.50 MM
• Piston Diameter: 54.44 MM
• Piston Oversize: 0.50 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2146CS, Piston pin #S288, Circlip #CW14.

Cylinder preparation

Wiseco specifies: Bore and Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

• Honda CR125 R 1987: At bores of 55 mm or above, modify the power valve before fitting.

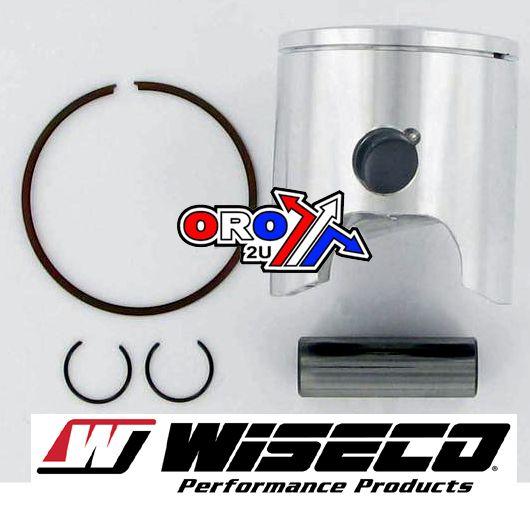

Manufacturer photograph for this reference. Packaging presentation may change.
