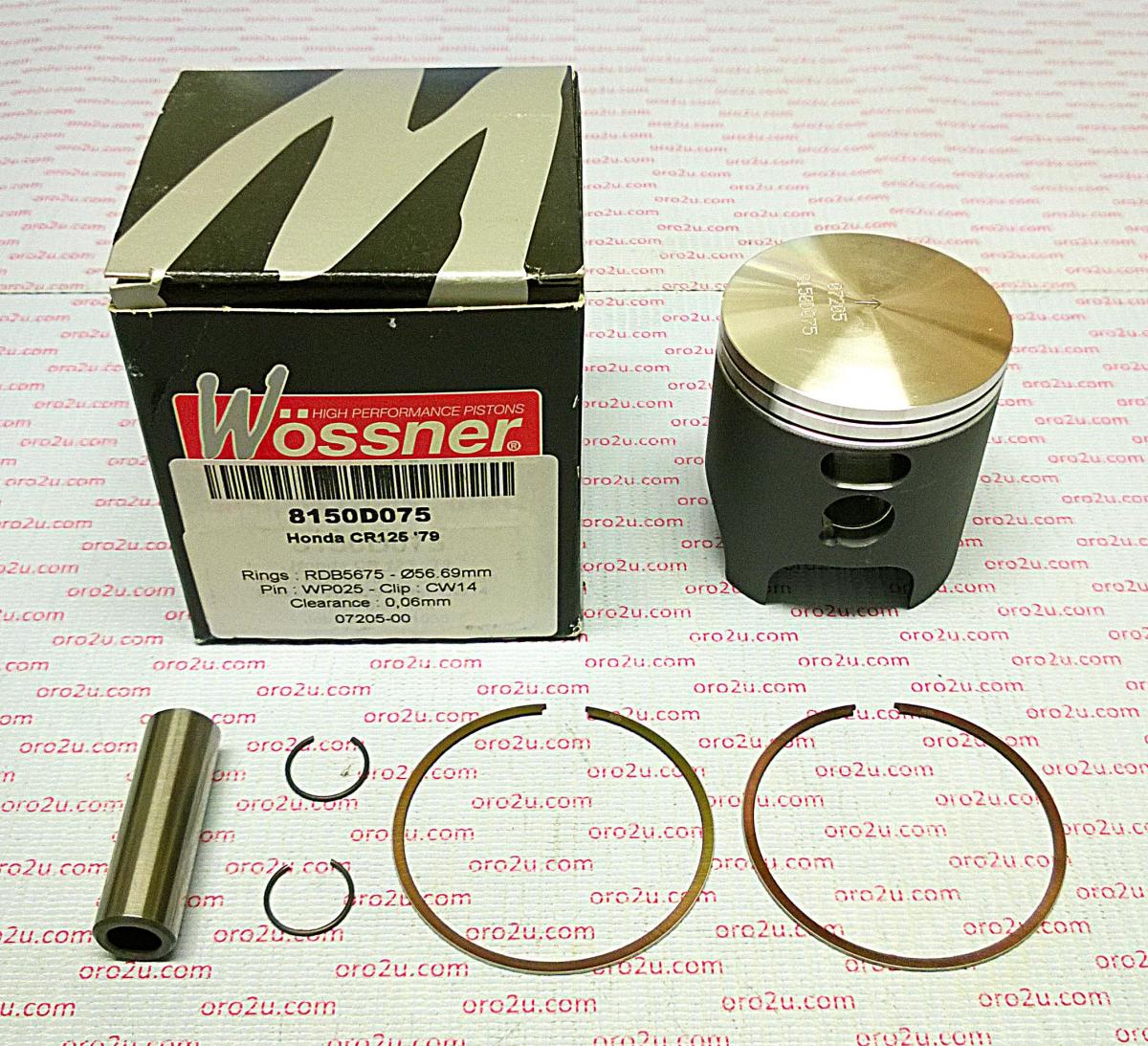

PISTON KIT 1979 CR125 56.00, FORGED WOSSNER 8150DA

Piston kit 56mm Bore 55.94 Wossner 8150DA (STD)

HONDA
CR125 1979,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W430+P0.WO (oro2u.com)
Wossner Piston Honda CR125 56 mm Bore (PN# 8150DA)
Lock P/N CW14
Pin P/N WP025
Ring Set P/N RSB5600 x 2

Display (cm3) 123
Hub stroke (mm) 70.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

Cross reference numbers ONLY.
13100-444-000, 09104850, 430M05600
