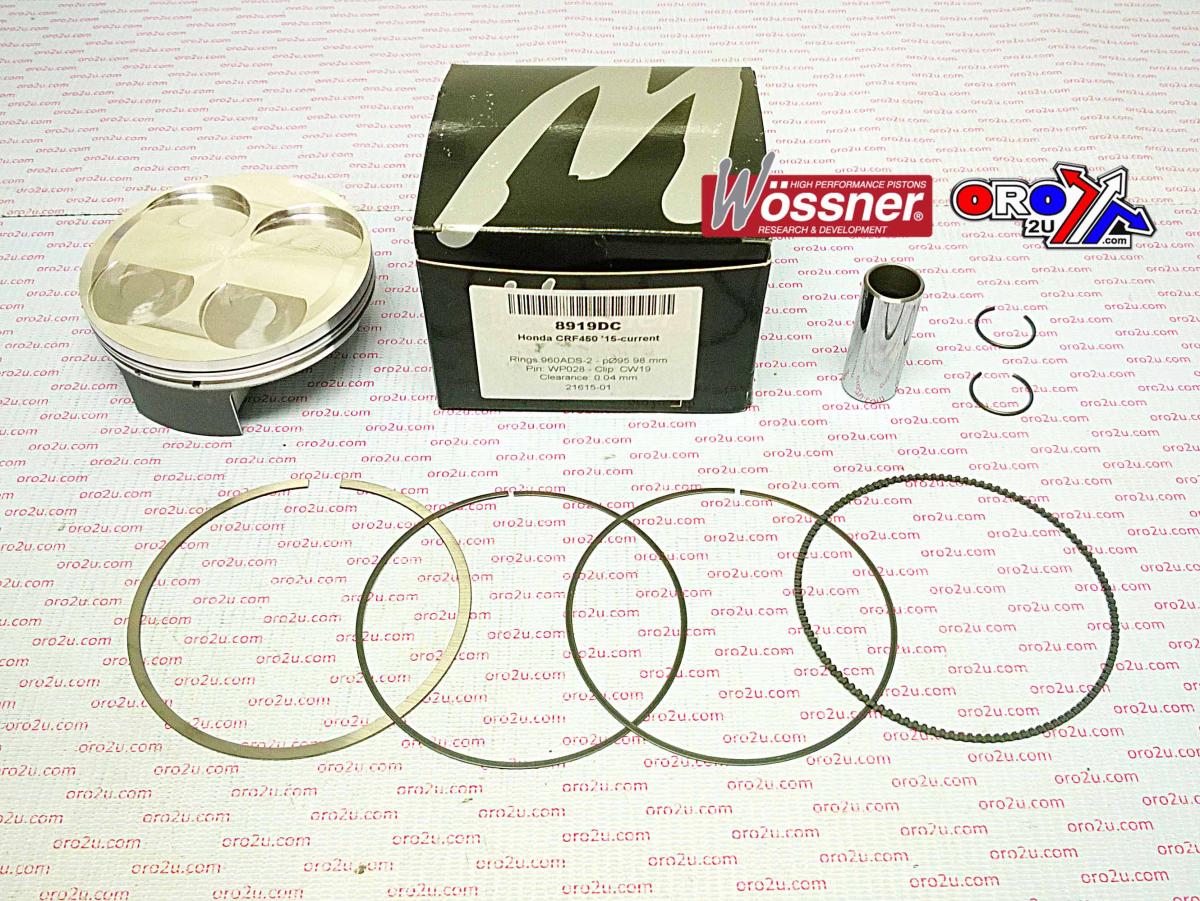

PISTON KIT 15-16 CRF450R 96mm, WOSSNER 8919DC

Piston kit 96.02mm BORE 95.98 Wossner 8919DC (+0.02mm)

HONDA
CRF450R 2015 - ,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W927.C.WO (ORO2U.COM) HONDA CRF450R 2015 - 2016,
WOSSNER PISTON KIT
SIZE 95.98
WOSSNER # 8919DC
Circlip P/N CW19
Pin P/N WP028
Ring Set P/N 960ADS-2

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.50:1
Dome volume (cm3) -2.24
Compression height (mm) 20.60
Theorectical weight (G) 241.00
