PISTON KIT 14-15 CRF250 76.80, 8912DA WOSSNER HONDA, 13110-KRN-A80

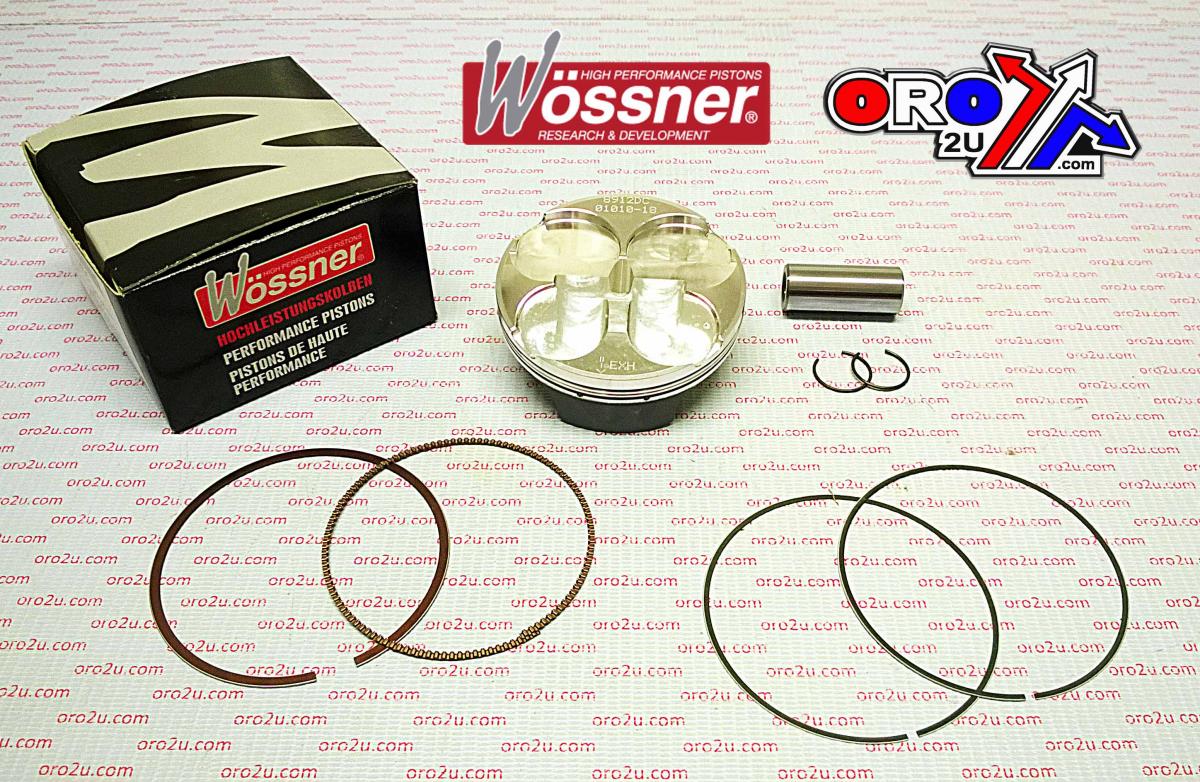

Piston kit 76.80mm BORE 76.76 Wossner 8912DA (STD)

HONDA
CRF250R 2014 - 2015, (High compression)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W958.A.WO.HC (oro2u.com) Honda CRF 250 2014 - 2015,
Wossner Piston Honda CRF250 HC COMPRESSION 14.5:1 76.76 mm Bore (PN# 8912DA)
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 768XAS

Display (cm3) 249
Hub stroke (mm) 53.80
Clearance (mm) 0.04
Wossner compression Ratio: 14.50:1
OEM Compression ratio: 13.50:1
Dome volume (cm3) +0.10
Compression height (mm) 28.00
Theorectical weight (G) 19.00

Cross reference numbers ONLY.
13110-KRN-A80
