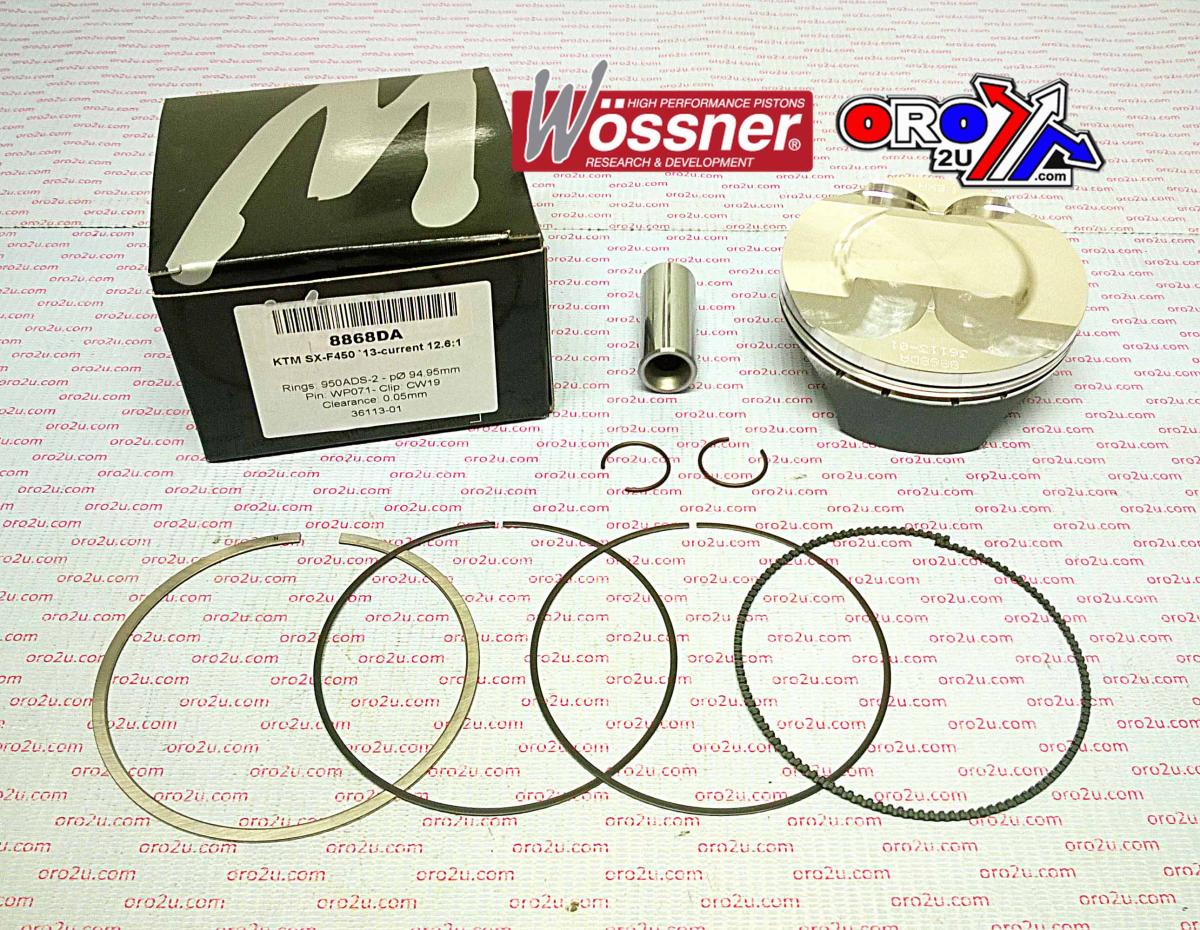

PISTON KIT 13-18 SXF450 95mm, WOSSNER 8868DA KTM 78930007300

KTM
SX-F450 2013 - 2018,

HUSQVARNA
See Bellow.

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W956.A.WO WOSSNER PISTON KIT KTM SX-F450 2013-18
Lock P/N CW19
Pin P/N WP071
Ring Set P/N 950ADS-2

Display (cm3) 449
Hub stroke (mm) 60.80
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 12.60:1
Dome volume (cm3) +1.00
Compression height (mm) 22.80
Theorectical weight (G)

Cross reference numbers ONLY.
78930007300, 40073M09500
