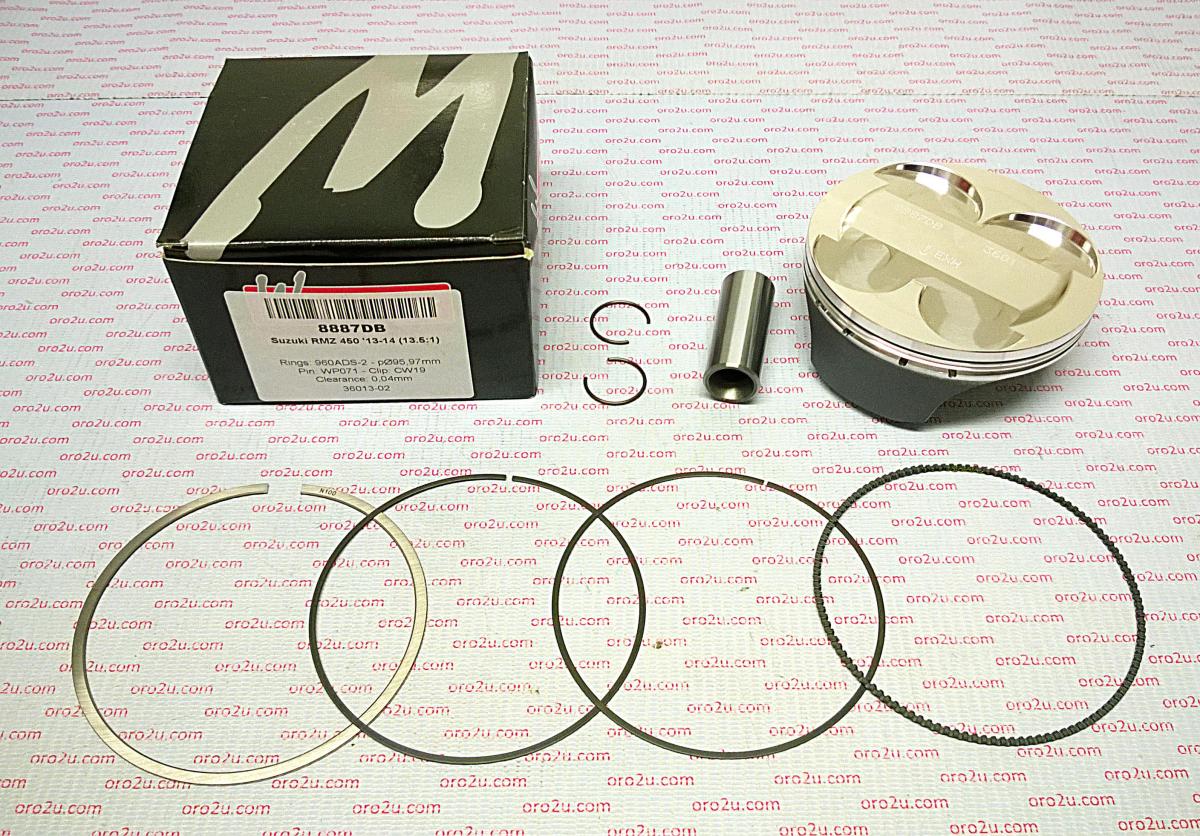

PISTON KIT 13-17 RMZ450 96 HC, WOSSNER 8887DB SUZUKI

Piston kit 96.01mm Bore 95.97 Wossner 8887DB (+0.01)

SUZUKI
RM-Z450 2013 - 2017,
(HIGH COMPRESSION)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W4956.B.WO (oro2u.com)
Wossner Piston Kit 95.97mm (8887DB)
Lock P/N CW19
Pin P/N WP071
Ring Set P/N 960ADS-2
Rod P/N P4013
1 x MB83C072C (Right)
1 x MB830053-4 (Left)

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) -0.40
Compression height (mm) 22.90
Theorectical weight (G)
