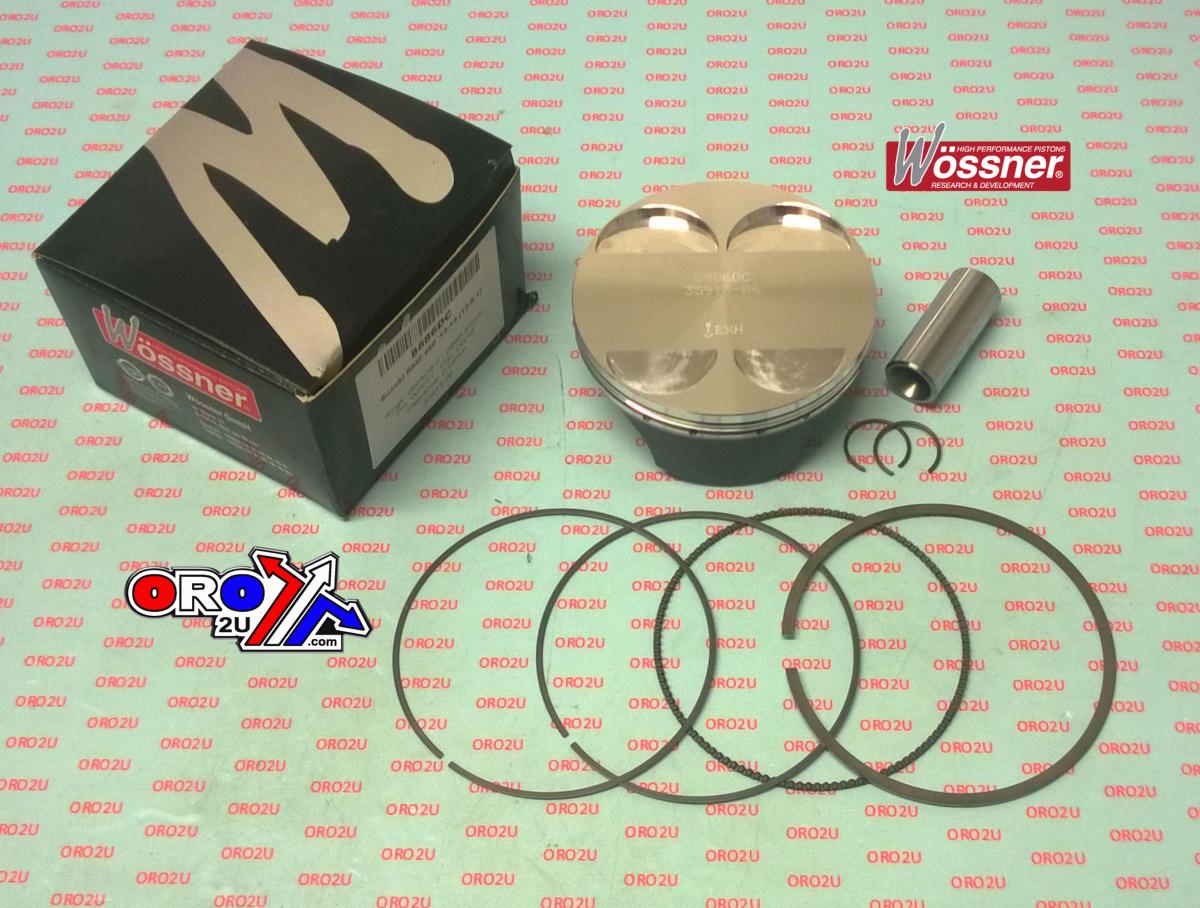

PISTON KIT 13-17 RMZ450 96.00, WOSSNER 8886DC SUZUKI

Piston kit 96.02mm Bore 95.98 Wossner 8886DC (+0.02)

SUZUKI
RM-Z450 2013 - 2017,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W4955.C.WO (oro2u.com)
Wossner Piston Kit 95.97mm
Lock P/N CW19
Pin P/N WP071
Ring Set P/N 960ADS-2
Rod P/N P4013
1 x MB83C072C (Right)
1 x MB830053-4 (Left)

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.50:1
Dome volume (cm3) -1.00
Compression height (mm) 22.90
Theorectical weight (G)
