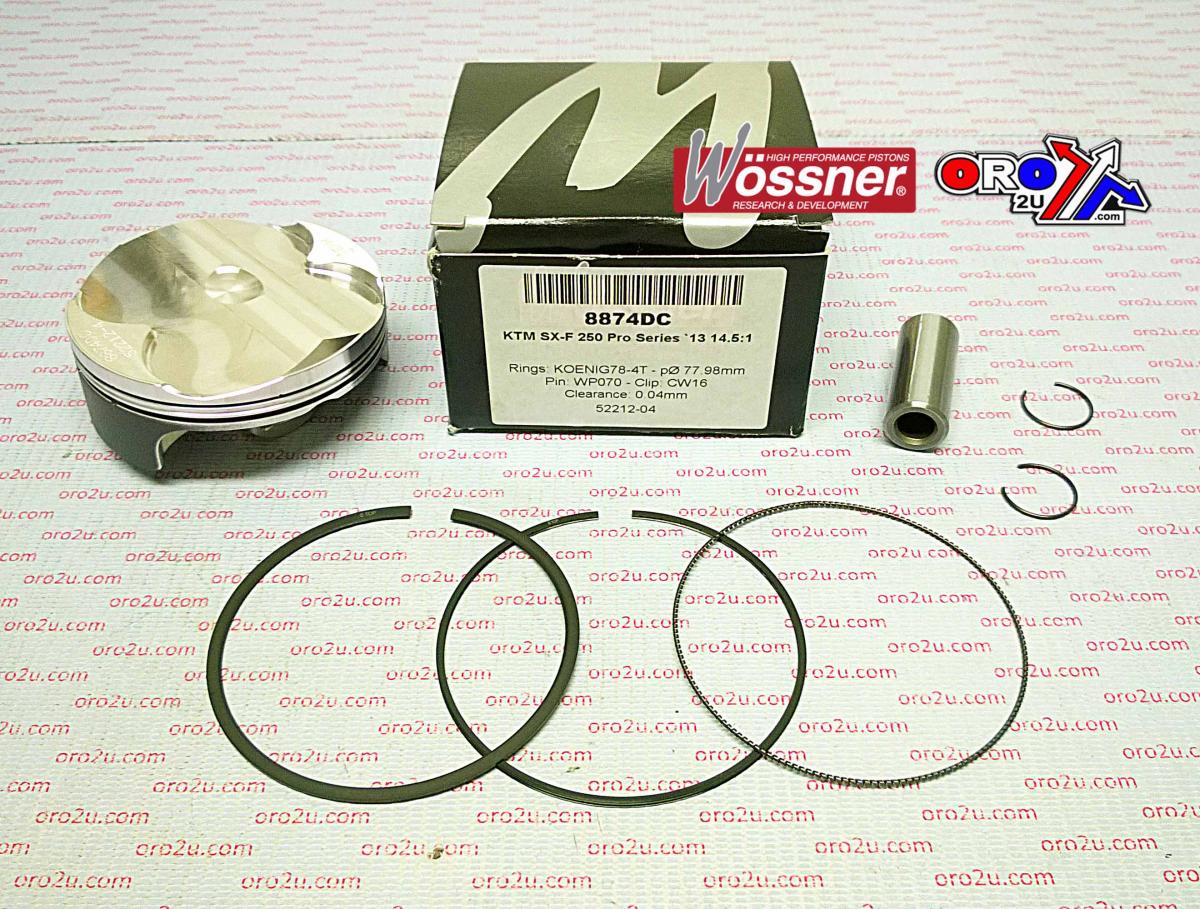

PISTON KIT 13-16 SXF250 78mm C, WOSSNER 8874DC HC KTM

KTM
SX-F250 2013 - 2015, (High compression)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W955.C.WO.HC HIGH COMPRESSION WOSSNER 8874DC C PISTON KIT
Lock P/N CW16
Pin P/N WP070
Ring Set P/N RIK78.00

Display (cm3) 249
Hub stroke (mm) 60.80
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 12.60:1
Dome volume (cm3) +1.00
Compression height (mm) 22.80
Theorectical weight (G)
