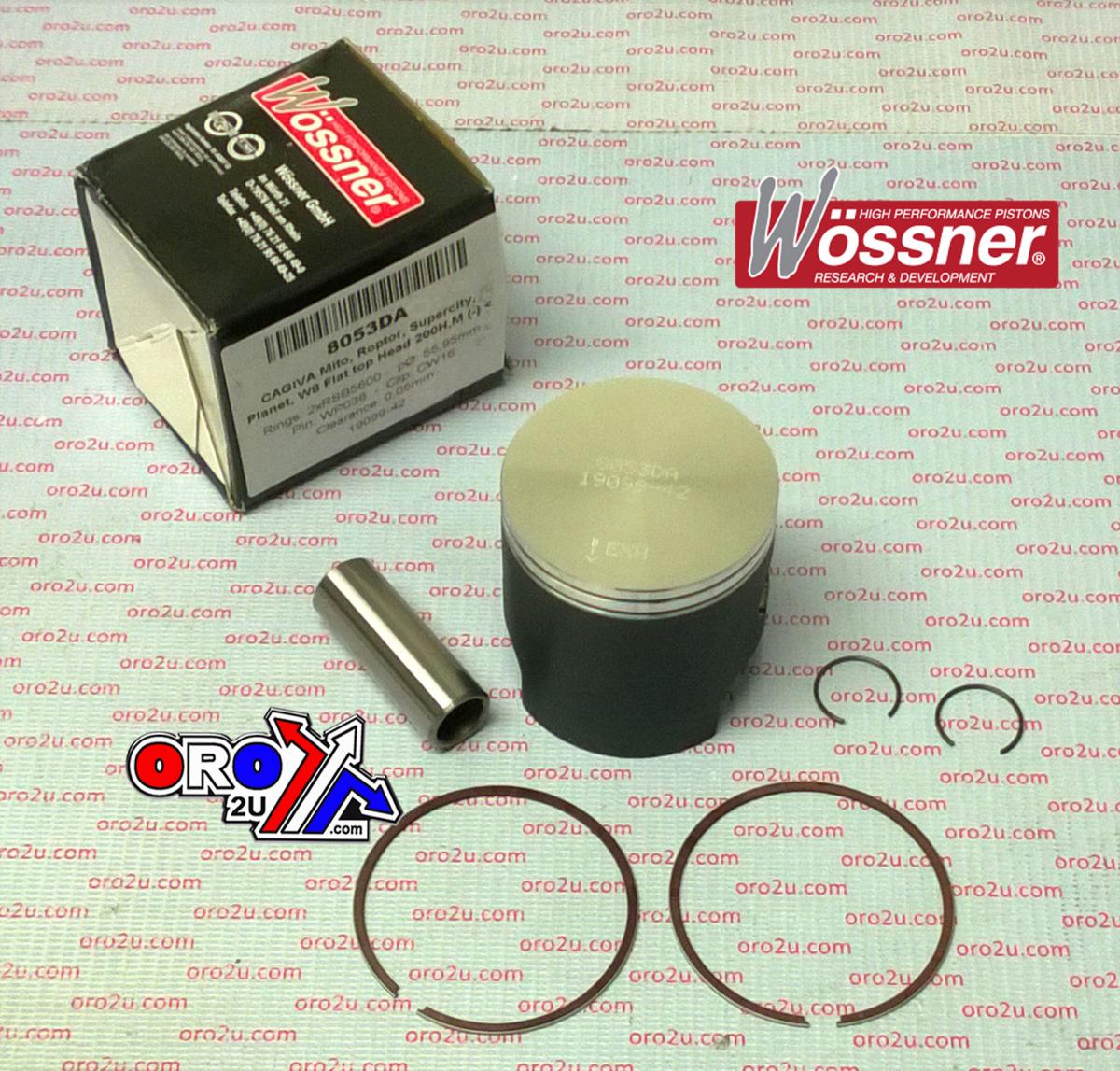

PISTON KIT 125 MITO 93-8 56mm, CAGIVA 8053DA WOSSNER

CAGIVA
125 Mito/ Raptor / Supercity / Planet / W8 / Head 200H,M 2000-2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W940+00A.WO (phoenixmotos.com)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RDB5600

Display (cm3) 124
Hub stroke (mm) 50.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) Flat
Compression height (mm) 25.00
Theorectical weight (G)
