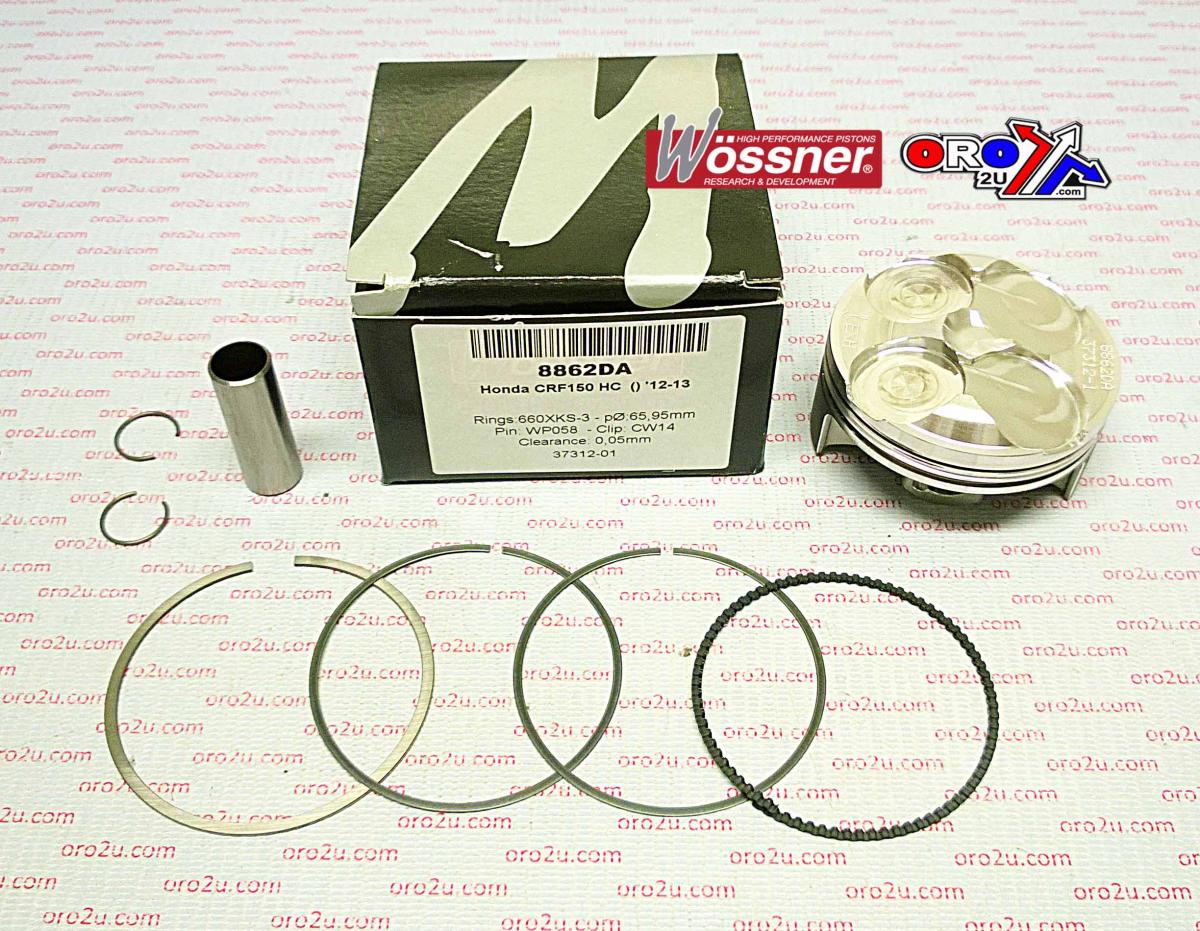

PISTON KIT 12-18 CRF150R 66.00, WOSSNER 8862DA HC, 13101-KSE-A70

Piston kit 66mm Bore 65.95 Wossner 8862DA (STD)

HONDA
Honda CRF150R 2012-2018,
Pro series

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W921.A.WO (oro2u.com)
Lock P/N CW14
Pin P/N WP058
Ring Set P/N 660XKS
Size. 66.95mm

Display (cm3) 149
Hub stroke (mm) 43.80
Clearance (mm) 0.05
Wossner compression Ratio: 12.20:1
OEM Compression ratio: 111.70:1
Dome volume (cm3) -0.80
Compression height (mm) 20.60
Theorectical weight (G)

Cross reference numbers ONLY.
13101-KSE-A70
