PISTON KIT 12-18 CRF150R 66.00, 8861DA WOSSNER, 13101-KSE-A70

HONDA
CRF150R 2012 - 2018,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Hard teflon skirt coating for perfect fit and conformability to your cylinder bore.

Part No. 56-W914.A.WO (phoenixmotos.com) Honda CRF150R 2012 - 2018,

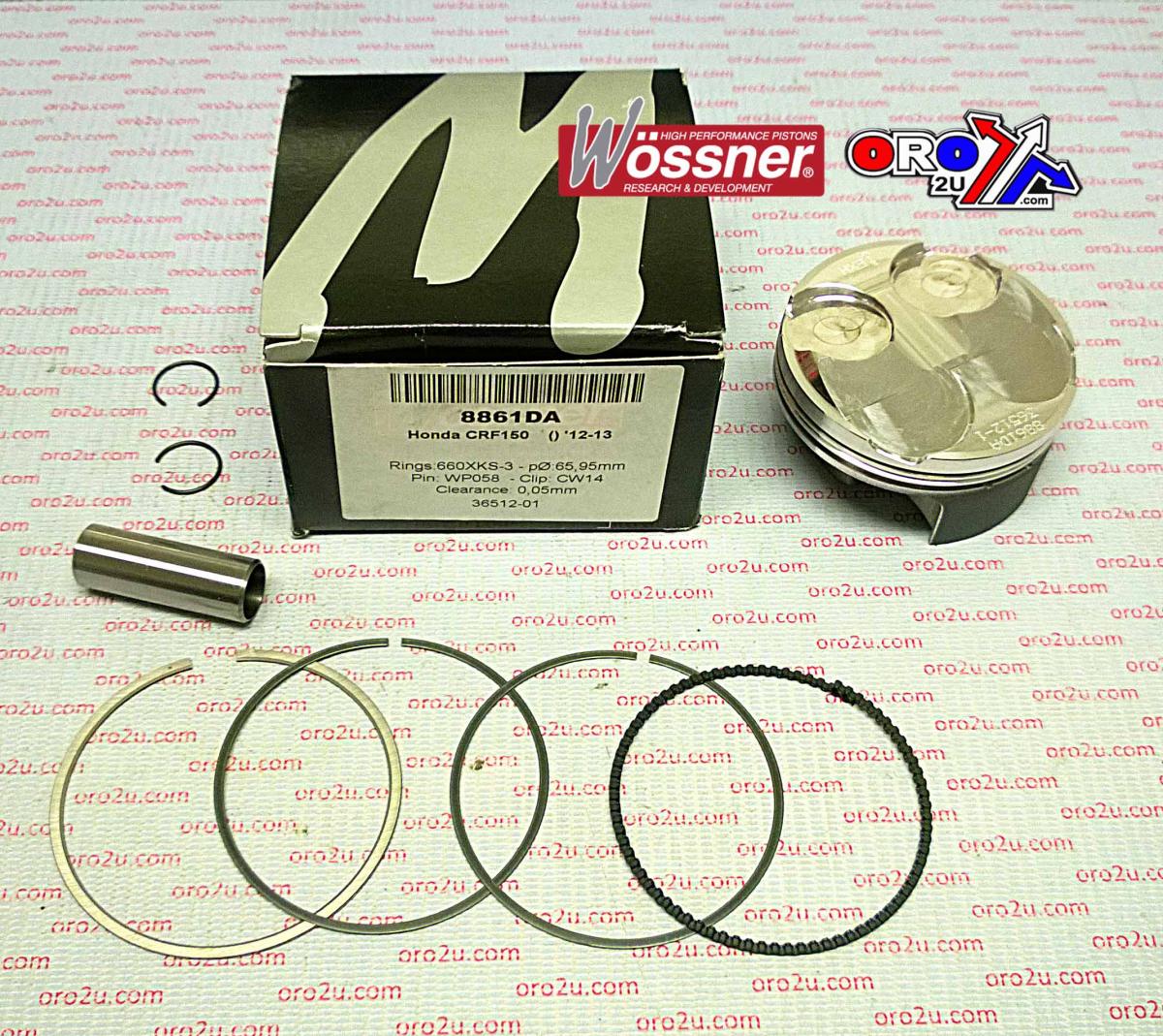

Wossner Piston 66 mm Bore (PN# 8861DA)
Clips P/N CW14
Pin P/N WP058
Ring Set P/N 660XKS
Size. 66.95mm

Display (cm3) 149
Hub stroke (mm) 43.80
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 11.70:1
Dome volume (cm3) -1.40
Compression height (mm) 20.60
Theorectical weight (G)

Cross reference numbers ONLY.
13101-KSE-A70
