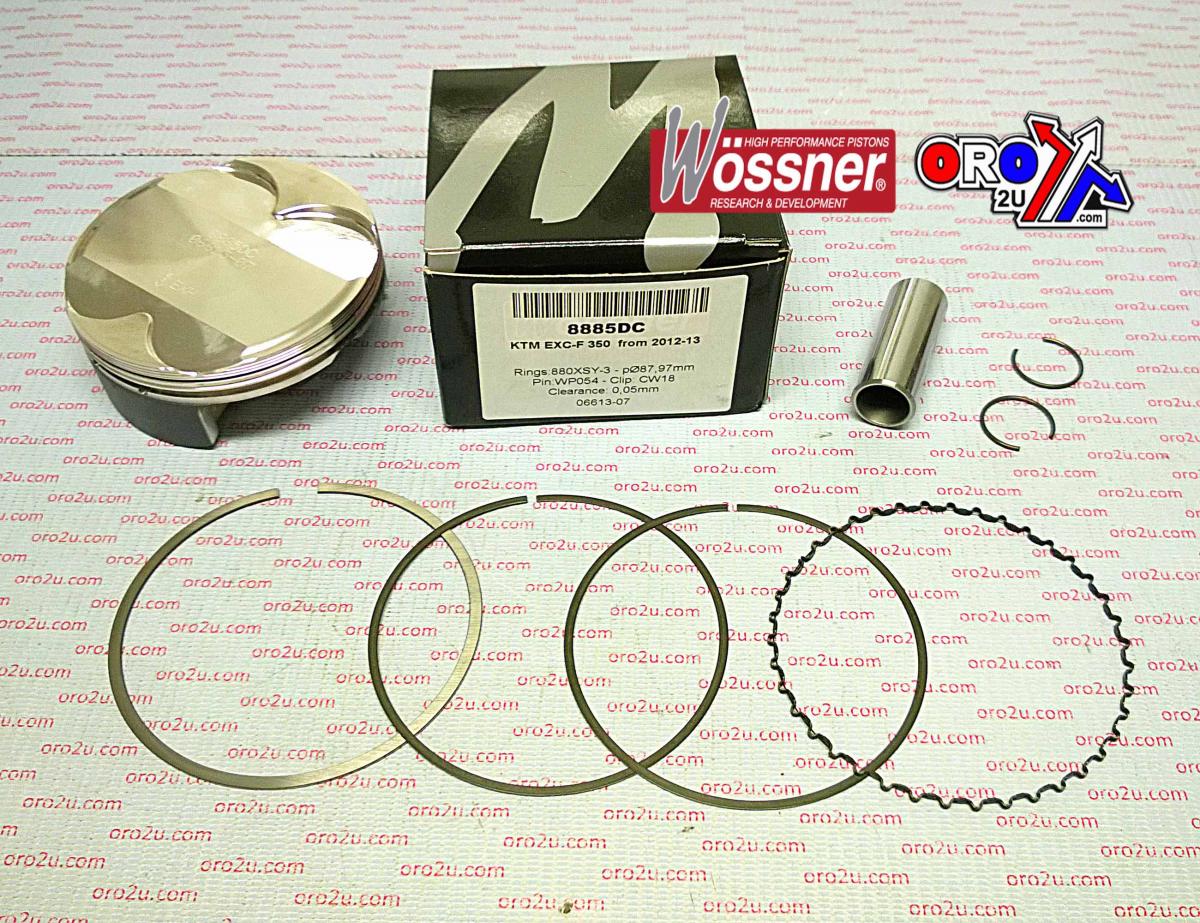

PISTON KIT 12-16 KTM EXC-F 350 88, WOSSNER FORGED 8885DA 77230107100-I 77530107100

HUSABERG
FE350 2014 -,

KTM
EXC-F 350 2013,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W960.A.WO (phoenixmotos)
KTM 350 EXC-F (2012-2015), KTM 350 XC-F (2012-2015), KTM 350 XCF-W (2012-2015), KTM Freeride 350 (2012-2014), Husaberg FE350 (2013-2014), Husqvarna FE350 (2014),

Wossner Piston KTM EXC-F 87.95mm Bore
Lock P/N CW18
Pin P/N WP054
Ring Set P/N 880XSY
Rod P/N P4061

Display (cm3) 349
Hub stroke (mm) 57.50
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 12.30:1
Dome volume (cm3) -0.10
Compression height (mm) 20.50
Theorectical weight (G)

Cross reference numbers ONLY.
77230107100-I, 40056M08800, 77530107100
