PISTON KIT 12-14 EXC-F450 95mm, WOSSNER 8898DB KTM

HUSABERG
FE450 2014,

KTM
EXC550 2012 - 2014,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

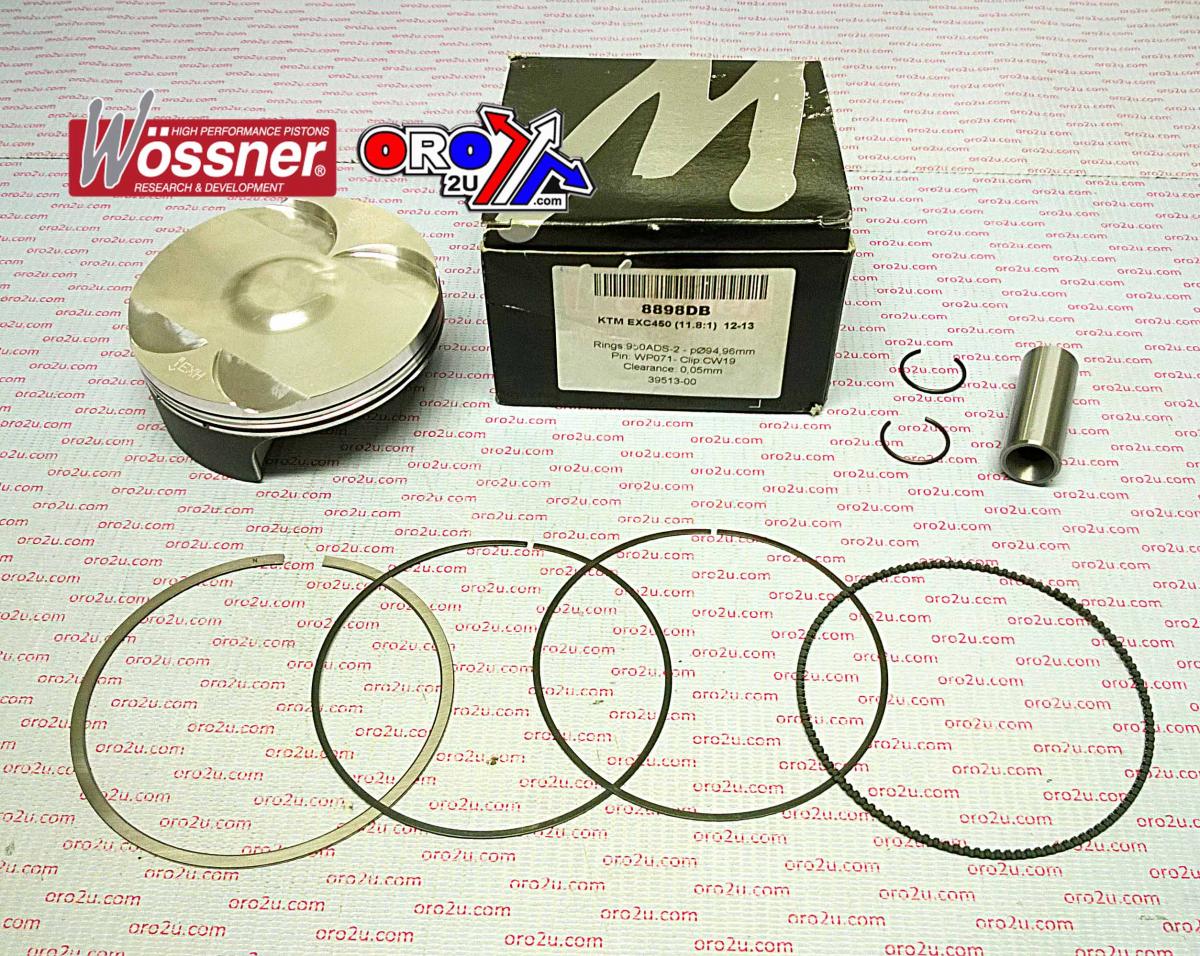

Part No. 56-W968.B.WOKTM EXC-F450 2012-2014,
WOSSNER PISTON KIT
Piston Size: 94.96mm
Stroke: 63.4
Comp. ratio: 11.9:1
Comp. Height (mm) 22.80
RING P/N 950ADS-2
CLIP P/N CW19
PIN P/N WP037
(P/N# 8898DB)

Display (cm3) 449
Hub stroke (mm) 63.40
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 11.80:1
Dome volume (cm3) -1.60
Compression height (mm) 22.80
Theorectical weight (G)
