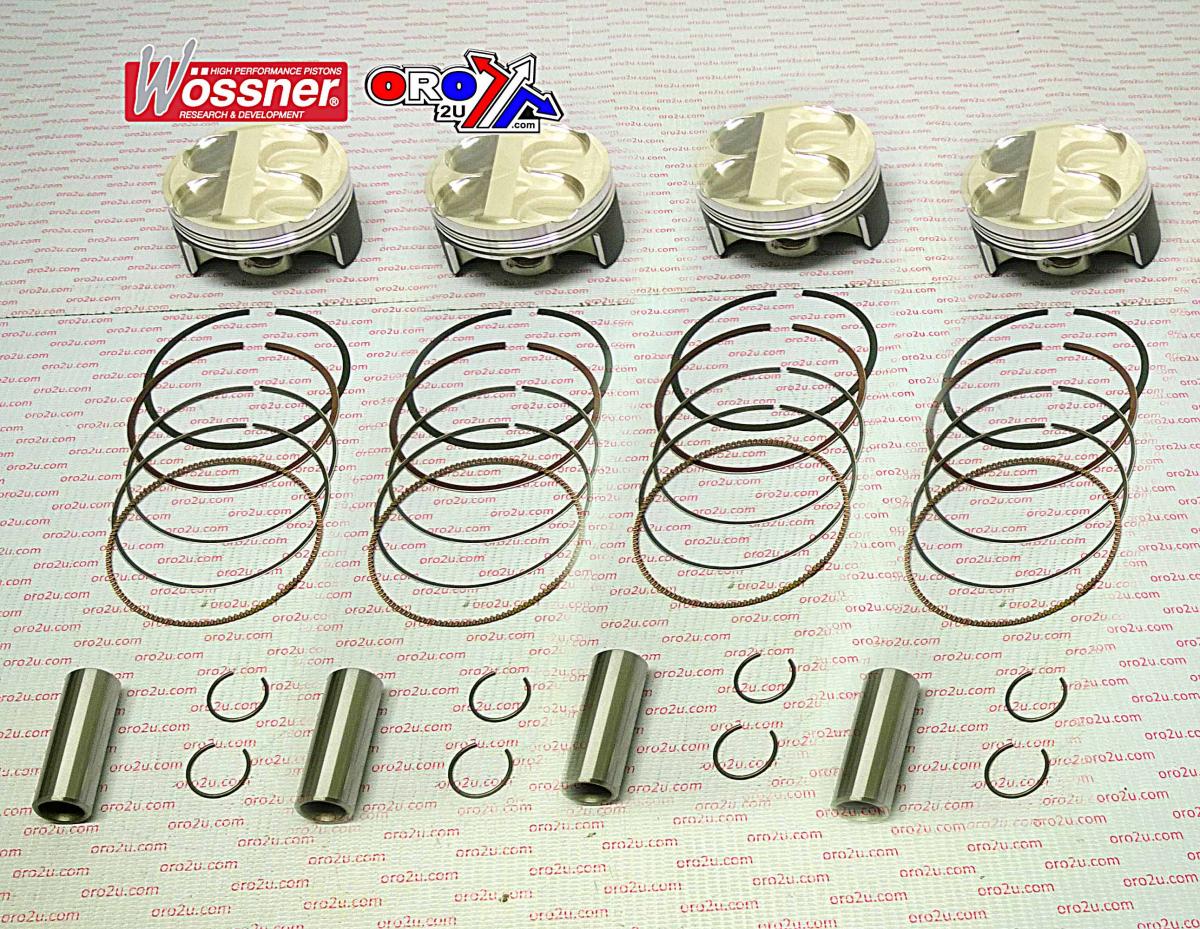

PISTON KIT 11-14 ZX10R KAW, WOSSNER K8832D300-4 FULL SET, KAWASAKI ROAD

KAWASAKI
ZX10R 2011 - ,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9809.79.WO (phoenixmotos.com)
KAWASAKI 2011 - 2014 ZX10R K8832D300-4 WOSSNER PISTON, 79(mm),
Lock P/N CW17
Pin P/N WP038
Ring Set P/N 790XAS

Display (cm3) 998
Hub stroke (mm) 55.00
Clearance (mm) 0.06
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 13.00:1
Dome volume (cm3) -3.00
Compression height (mm) 22.70
Theorectical weight (G)
