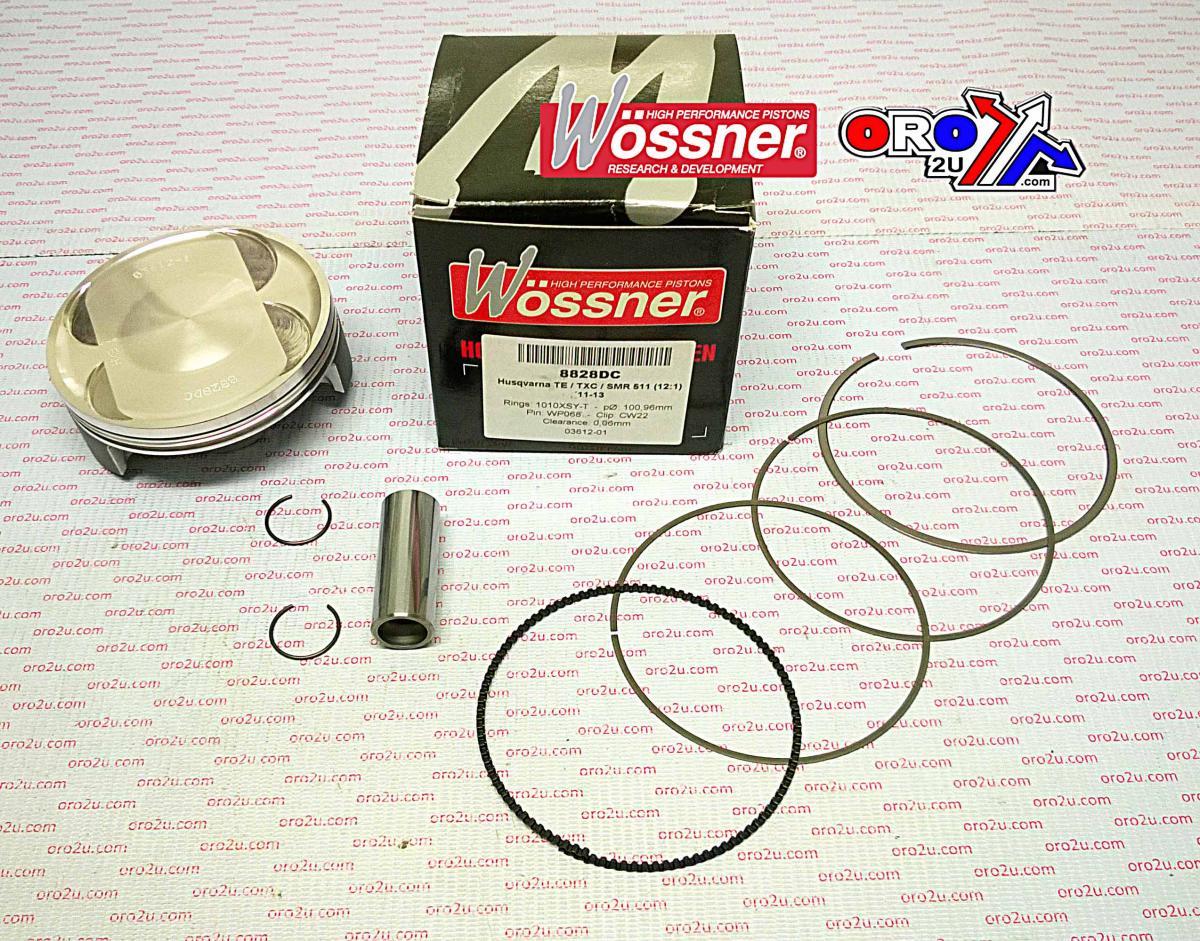

PISTON KIT 11-13 TE TXC511 101, HUSQVARNA WOSSNER 8828DA

Piston kit 101mm BORE 100.94 Wossner 8828DA (STD)

HUSQVARNA
TE511/TXC511/SMR511 2011-2013

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W919.A.WO (ORO2U.COM)WOSSNER PISTON KITHUSQVARNA TE511/TXC511/SMR511 2011-2013
SIZE 100.94mm
WOSSNER # 8828DA
CIRCLIP - CW20
PIN - WP068
RINGS - 1010XSY

Display (cm3) 477
Hub stroke (mm) 59.60
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 12.00:1
Dome volume (cm3) -6.00
Compression height (mm) 25.00
Theorectical weight (G)
