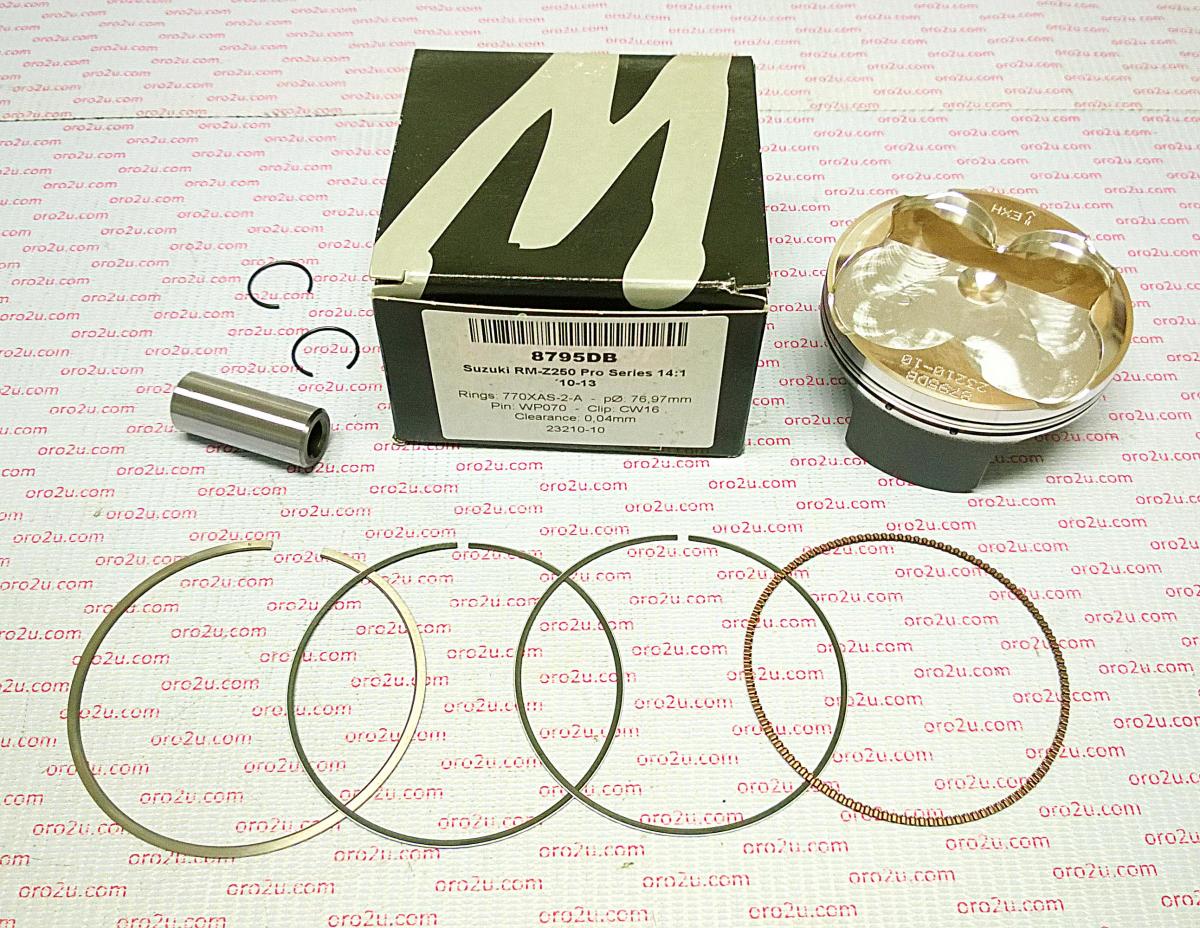

PISTON KIT 10-14 RMZ250 77 HC, COMP 14:1 WOSSNER 8795DC

Piston kit 77.02mm Bore 76.98 Wossner 8795DC (+0.02)

SUZUKI
RM-Z250 2010-14,
(High compression)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W260.C.WO (oro2u.com)
Wossner Piston Kit 77.02 mm Bore (PN# 8795DC)
Compression Ratio 14:1
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 770XAS-2

Display (cm3) 249
Hub stroke (mm) 53.60
Clearance (mm) 0.06
Wossner compression Ratio: 14.00:1
OEM Compression ratio: 13.50:1
Dome volume (cm3) -2.10
Compression height (mm) 19.60
Theorectical weight (G)
