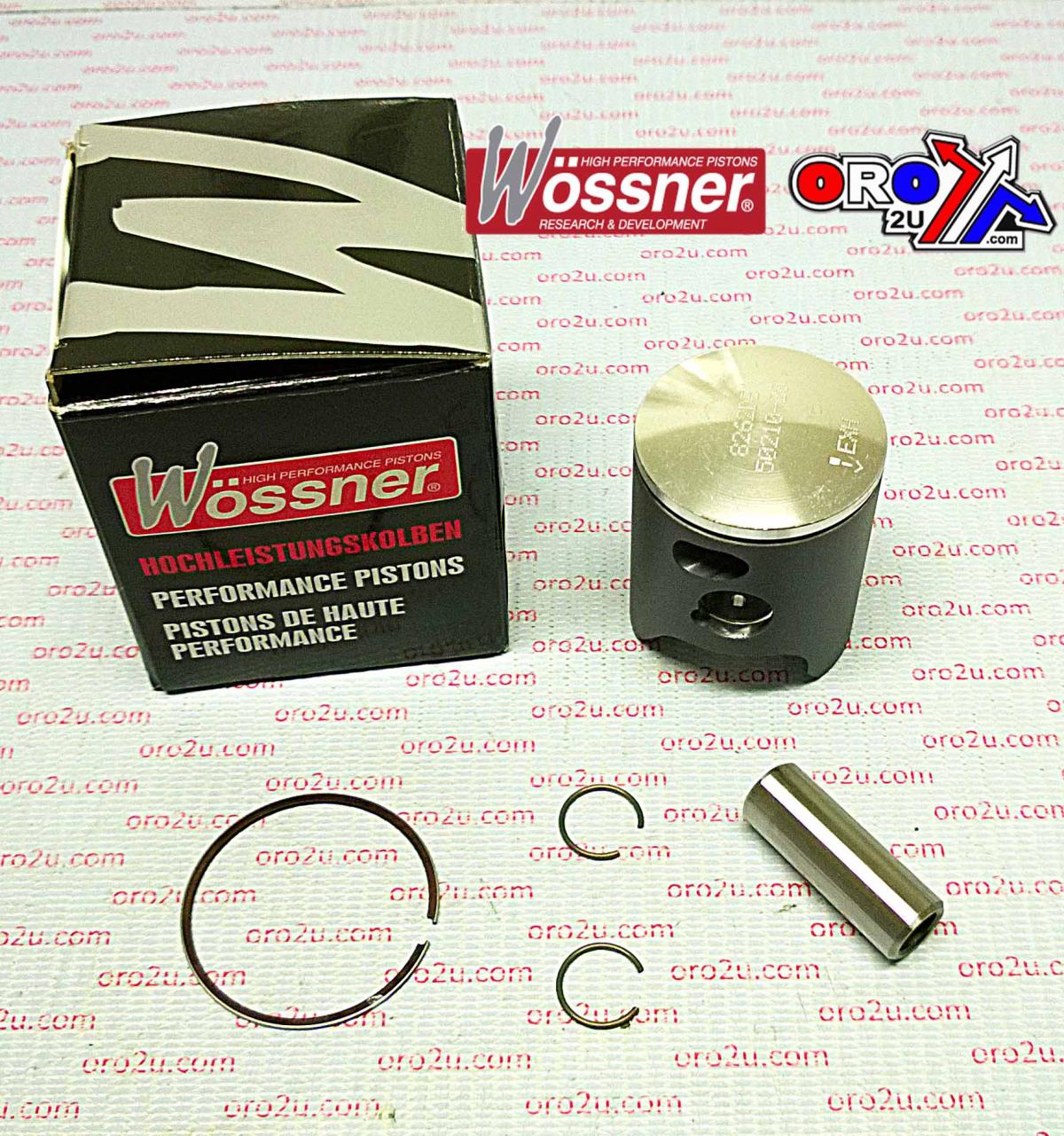

PISTON KIT 09-18 SX50 39.5mm B, WOSSNER 8262DB KTM MX

Piston Kit 39.51mm Bore 39.46 Wossner 8262DB (+0.01mm)

KTM
SX50 2009 - 2018,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. Part No. 56-W802.B.WO (oro2u.com)
Wossner Piston KTM SX50 39.51 Bore (PN# 8262DB)
Lock P/N CW12
Pin P/N WP101
Ring Set P/N RSB2950
Rod P/N P2053

Display (cm3) 50
Hub stroke (mm) 40.00
Clearance (mm) 0.04
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 21.60
Theorectical weight (G)

Cross Reference Numbers Only:
45230007000 I
